  • RM3544 front
  • RM3544 back

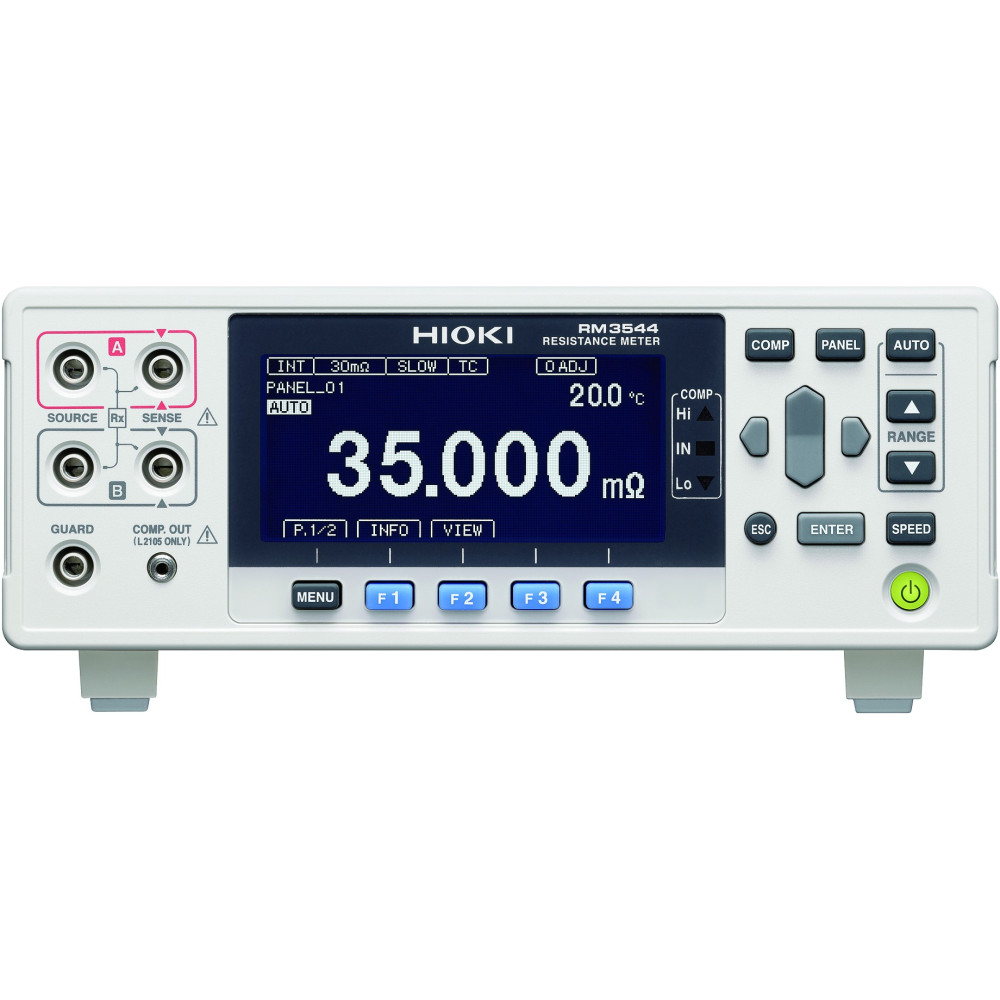

RM3544 front

RM3545 - Bench-top 5 digits milliohmeter

Last items in stock
€1,067.31
Tax excluded Delivery in 3-4 working days

We also offer the post sale services

  • Ordinary and extraordinary maintenance
  • Installation
  • Workers training
  • Spare parts
  • Calibration
Contact us for service
Add to wishlist
Description

The RM3544 milliohmeter is ideal for testing and trial on production lines and for quality control: it is typically used on windings, resistors, transformers, motors, etc., both on test benches and for quality control in production.

It covers a wide spectrum of resistance values: 9 measurement ranges from 30mΩ to 3MΩ. Measurement range from 1 μΩ to 3.5 MΩ. 21msec response speed. "Scaling" function to convert the measured resistance value into other physical quantities such as, for example, the length of a cable. Ability to save and recall up to 10 different test configurations. Programmable comparator

The 5-digit benchtop milliohmeter has a wide power supply range of 90V to 264V 50/60 Hz.

High performance, 5 digits, 0,02% accuracy, 1uΩ resolution, max measurable current: 300mA.

Simplifying high-accuracy resistance measurement

  • Guaranteed accuracy with no warm-up or zero setting
  • Convenient wide range options (measure from 0.000mΩ to 3.500MΩ, max. resolution 1uΩ)
  • High durability probes
  • Temperature correction

Easy-to-use resistance meter

  • High-intuitive advanced functionality
  • Footprint of just 215x166 mm
  • Ability to extend measurement cable lenght
  • High-speed, comprehensive productivity support

What's included

  • RM-3544
  • Power Cord
  • Clip type lead L2101
  • Instruction manual
  • Spare fuse

Warranty

A warranty of the duration of 1 year is provided.

1 Item
Hioki
RM3544
Temperature
From 0°C to +40°C
Dimensions
H:215 mm L:80 mm P:166 mm
Weight
0,92kg
Power
Rated supply voltage: 100 to 240 VAC. Rated supply frequency: 50/60Hz
Humidity
<80%
Speed
FAST/MED/SLOW
Control system
Panel save parameter: resistance measurement ranges, measurement speed, comparator, ecc...
Functions
Temperature correction, comparator (ABS/REF%) key-lock, display digit count selection function, automatic power supply frequency setting, scaling, auto-hold
Measurements
Resistance: from 0.0000mΩ (30mΩ range) to 3.500MΩ (30MΩ range), 9ranges
Temperature (thermistor): from -10.0°C to 99,9°C
Measurement method
4-terminal direct current (constant current), banana plug
Reset
Within -3% to 50% f.s. of each range (f.s. 30,000 dgt)
