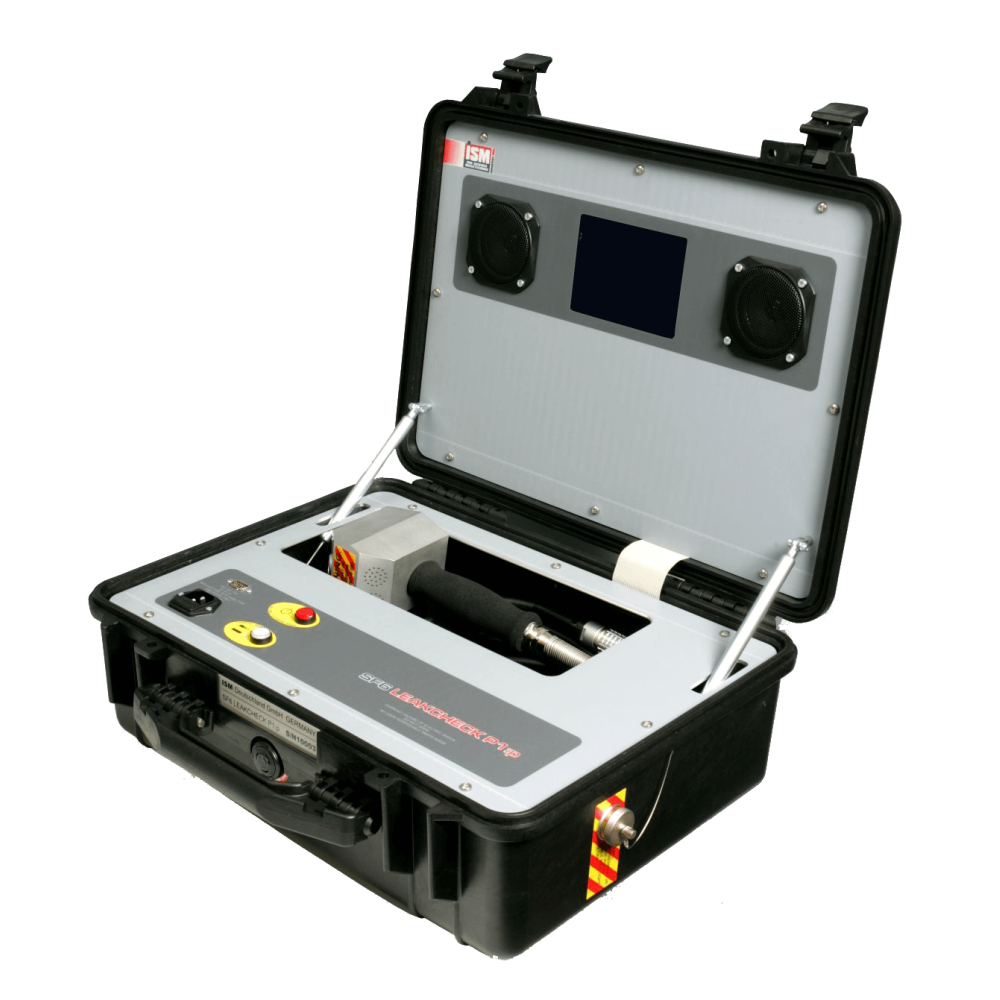

SF6 LeakCheck P1:p - Portable SF6 leak detector

Available on order
€30,348.50
Tax excluded Delivery in 2-4 weeks
Model

We also offer the post sale services

  • Ordinary and extraordinary maintenance
  • Installation
  • Workers training
  • Spare parts
  • Calibration
Contact us for service
Add to wishlist
Description

SF6 LeakCheck P1:p with award winning Negative Ion Capture (NIC) technology is designed for the location, leak testing, and measurement of SF6 leaks in high voltage electrical switchgear.

The revolutionary SF6 leak detector rapidly detects leaks down to 1 x 10-8 ml/sec, with a response and clear down of less than 1 second.

The instrument’s award winning Negative Ion Capture (NIC) technology with non-radioactive source eliminates problems of registration, storage, and transportation.

The LeakCheck P1:p SF6 leak detector is unaffected by large leaks and will continue to remain uncontaminated even after exposure to 100% SF6 gas. The High Sense option increases the sensitivity up to 1 x 10e-8 ml/sec, 0.1 ppm and 0.001 gm/yr SF.

Best available SF6 leak detection

  • Ultra high sensitivity with a 1 x 10-8 ml/sec*
  • Award winning Negative Ion Capture (NIC) technology
  • 1 second rise and clear down for rapid leak detection
  • Unaffected by large leaks and 100% SF6 meaning no frustrating delays between searches
  • Choice of display units cc/sec, gm/yr and ppm for monitoring conformance to leak minimisation targets

Ease of use

  • Non-radioactive source for easy storage and transportation
  • No training required – switch on and go
  • Lightweight ergonomically designed handgun
  • Touch screen for easy navigation menus
  • Simple data storage and printing for analysis
  • No argon or other pressurised gases required for reduced cost of ownership

Applications

  • Testing and detection of SF6 leaks in high voltage switchgear (GIS)
  • Test on medical instruments
  • Loss-free control in medical instrumentation and in air conditioning systems containing SF6 and (H)CFC

What’s included

  • SF6 LeakCheck P1:p
  • P1 Consol
  • P1 Hand Gun
  • 3 x Spare Probes
  • Charger Cable (Mains) Certificate
  • Robust Peli case
Ion Science
A-24500
Response time
T90 < 1 second
Battery life
Lead acid battery, internal and fully protected Recharge between 85-265 AC V, 50/60Hz
Data logging
Over 500 data points with date and time stamp, download via RS232 to a PC
Temperature
Storage: -10 to 60 oC (14 to 140 oF) Operating: 0 to 50 oC (32 to 122 oF)
Dimensions
H:500 mm L:400 mm P:190 mm
Weight
15 kg
Sensitivity
1 x 10e-7 ml/sec, 1 ppm, 0,01 gm/yr SF6. Highsense Option: 1 x 10e-8 ml/sec, 0,1 ppm, 0,001 gm/yr SF6
Calibration
Via CalCheck calibration accessory
Allarme
Audio and visual with an optional handset alarm
Detector
Negative Ion Capture (NIC): a non-radioactive, non-restricting carriage and no licensing required.
Measurements Units
Measures ml/sec, gm/yr and ppm
