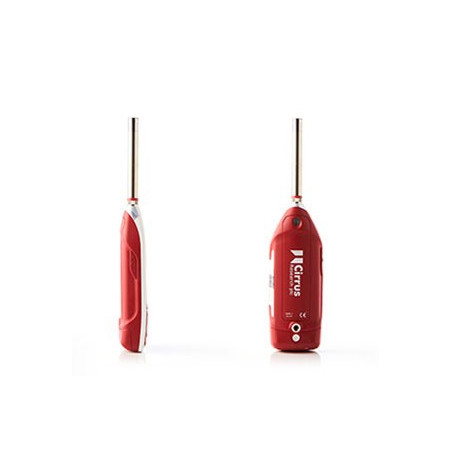

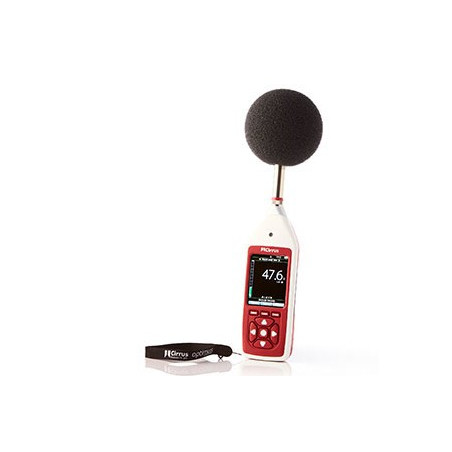

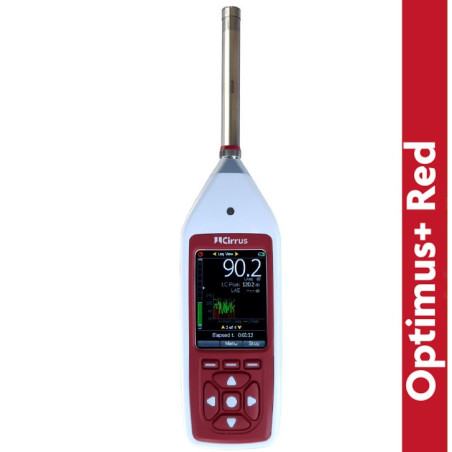

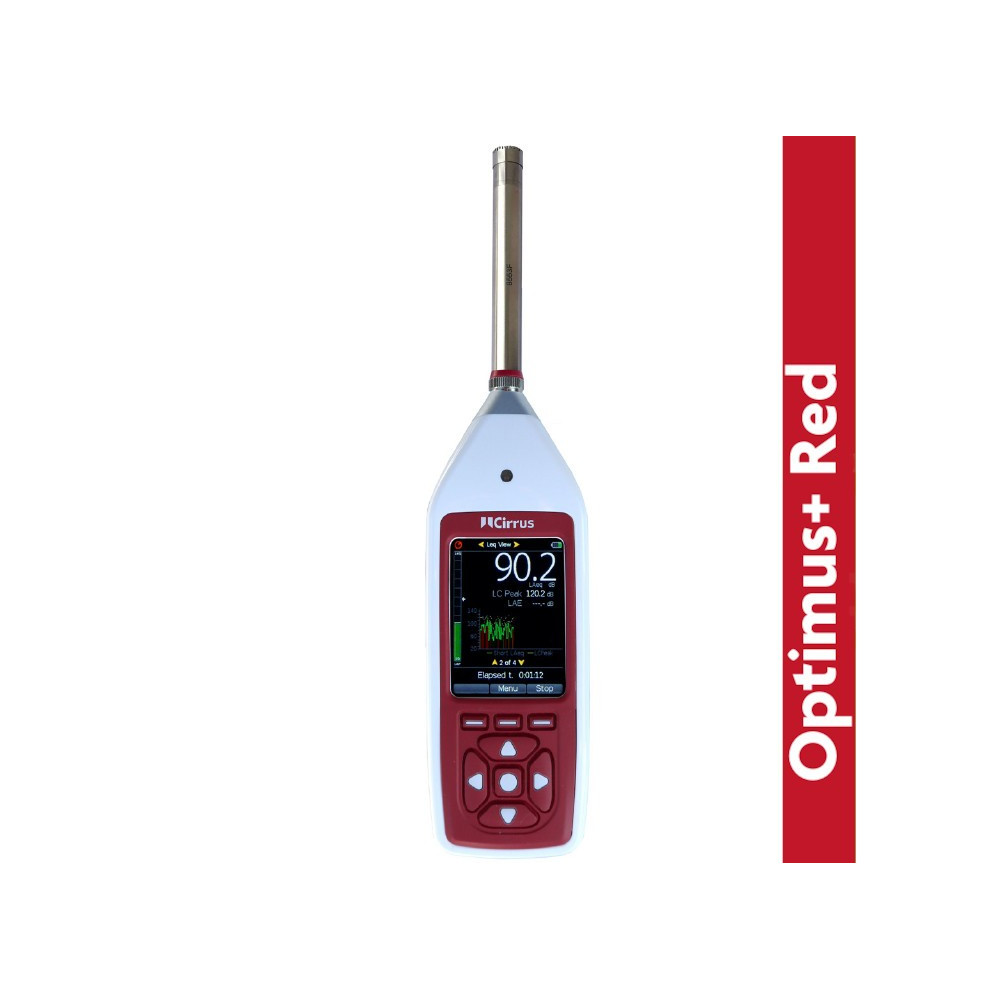

Optimus+ Red - Sound level meters

Available on order
€2,790.00
Tax excluded Delivery in 2-4 weeks
Data Logging
Type
Class

If you need a customized offer, or you can't find the configuration you need, do not hesitate to contact us.

We also offer the post sale services

  • Ordinary and extraordinary maintenance
  • Installation
  • Workers training
  • Spare parts
  • Calibration
Description

For occupational noise measurements

Measuring noise at work doesn’t need to be a time-consuming task. The Optimus+ Red sound level meter uses the very latest digital technology to save you time.

By measuring every parameter you need simultaneously, it can record everything in one measurement. There’s no concern about choosing the wrong function or missing any data. All you need to do to get going is switch on, calibrate and start.

All of your measurement data displays on the large full-colour screen, so you can see straight away if there are any noise problems in your workplace. You can also easily navigate screens to see the data you need during measurements.

Applications

  • Simple noise measurements
  • Alarm testing
  • Vehicle noise control
  • Noise ordinance and general noise measurements
  • Noise at Work surveys and noise exposure calculations
  • Occupational noise and industrial hygiene evaluations
  • Hearing protection selection

Why choose Optimus+ Red?

  • If you are working to the UK Control of Noise at Work Regulations 2005 or the EU Physical Agents (Noise) Directive, the Leq View gives you the information that you need
  • The LAeq and LCPeak values are measured at the same time, which allow the LEP,d (LEX,8h) and the Peak Action Levels to be determined
  • The LCeq-LAeq (C-A) value is measured, which can be used to select PPE using the HML method
  • 1:1 octave bands (C & D models) for selection of PPE using octave band method

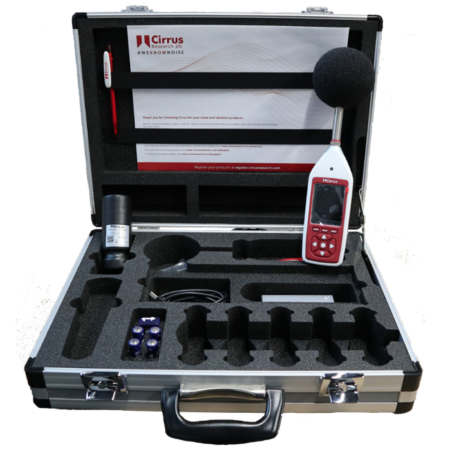

Included accessories

  • User manual
  • Certificate of Calibration
  • USB data/power cable
  • NoiseTools software USB stick (requires B, C or D version of instrument to download measurements)
  • CR:514 Class 2 or CR:515 Class 1 acoustic calibrator
  • UA:237 90mm windshield
  • CK:300 carrying case
  • User manual and Certificates of Calibration
  • USB data/power cable and NoiseTools software USB stick (requires B or C version of instrument to download measurements)
Cirrus
CK161B
Battery life
4 x AA alkaline
Temperature
-10°C to +50°C
Dimensions
283mm x 65mm x 30mm
Weight
300g / 10oz
Range
20dB to 140dB RMS Single Range
Connettività
Bluetooth
Memory
4GB Expandable
Connection
5v-15v via MultiIO socket via ZL:171 cable (2.1mm socket)
AC & DC output via ZL:174 (2 x Phono, 1m)
USB Type B to PC
Multi-pin IO for external power via ZL:171 cable (2.1m)
