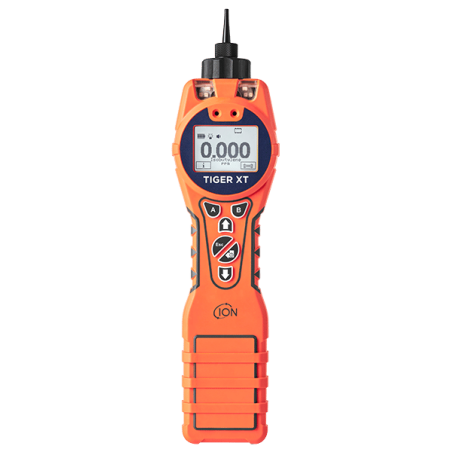

Tiger is the most advanced handheld VOC detector on the market with the widest measurement range, accurately detecting gases down to ultra low ppb levels up to 20,000 ppm. Tiger has the fastest response time of just two seconds, and is as quick to clear down. Its internal gas table contains over 700 response factors. The instrument’s photoionisation detection (PID) technology has been independently verified as best performing on the market for speed, accuracy, resistance to humidity and contamination, thanks to its patented Fence Electrode Technology.

Its patented Fence Electrode Technology with three electrode format and anti-contamination design ensures optimal performance within humid and heavily contaminated atmospheres, extending run time in the field. Tiger is ready to use with no complicated programming. The set up procedure can be done via a PC to perform basic functions. Direct connection from the instrument to the computer via a standard USB cable offers the fastest communication and data download available. Batteries can be replaced in potentially explosive environments due to the innovative intrinsic safe design. Low cost filters and lamps can be easily changed in seconds, minimizing instrument downtime.

Fast battery charging allows the instrument to be fully charged in 6.5 hours. Tiger offers simple, one handed operation. Its rugged design and protective, removable rubber boot withstand the harshest environments. The large, clear back-lit display allows for easy viewing in any light condition. An integrated torch is designed for directing the instrument’s probe into dimly lit areas. The illuminated keypad comes on when light is low. Tiger is fully upgradeable. This allows lower cost instruments to be purchased with the option of adding functionality if needed, without having to return it to the factory for modification.

Data Logging

With the optional Push to log function, the Tiger can record up to 120000 values on the internal memory upon user request.

With the optional Auto log function, the Tiger can automatically record on the internal memory up to 120000 for a continuous use estimated at over 80 days

What’s included

The Tiger VOC detector is available either as a base unit with a 10.6 eV lamp and rechargeable Li-ion batteries or with alkaline batteries and alternative lamp options.

Kit for base model:

  • TIGER instrument
  • Rechargeable battery (Li-ion)
  • Battery charger
  • Mains adaptor
  • Rubber boot
  • Explorer case
  • Carbon zero filter assembly
  • PTFE filter disc (dust filter)
  • Removal tool MiniPID stack
  • PID lamp cleaning kit
  • Lanyard (wrist strap)
  • USB cable
  • Calibration adaptor
  • Quick start guide & downloadable instrument manual
3 Items
Ion Science
20000 ppm or 20000 mg(m3 (gas dependent)
Response time
T90 < 2 seconds
Model dependent
± 5% + 1 digit
Battery life
24 hours continual use
Flow rate
≥ 220 ml/min (with blocked flow alarm)
-20 to 60 °C
H:340 mm L:90 mm D:60mm
0,72 kg
