Cub - Personal VOC detector

Last items in stock
Tax excluded Delivery in 3-4 working days
Docking station

If you need a customized offer, or you can't find the configuration you need, do not hesitate to contact us.

We also offer the post sale services

  • Ordinary and extraordinary maintenance
  • Installation
  • Workers training
  • Spare parts
  • Calibration

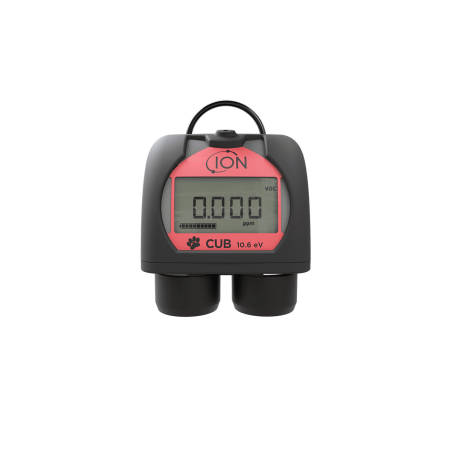

Cub is the world’s smallest, lightest personal PID monitor for the accurate detection of volatile organic. With market leading parts-per-billion (ppb) sensitivity, Cub gives an early warning of hazardous gases, including benzene, before they reach levels which are harmful: it has a dynamic range of 1 ppb to 5000 ppm, the widest on the market measuring over 480 selectable compounds.

When worker exposure exceeds preset limits the instrument’s audible, vibrating and flashing LED alarms alert you to the gases present. Readings are displayed in ppb and ppm on its bright, back-lit LCD display with selectable data logging time.

The instrument’s PID sensor technology has been independently verified as best performing for speed, accuracy and humidity resistant operation. Its unique anticontamination and patented Fence Electrode Technology provide extended run time in the most challenging environments, giving you accurate results you can truly rely on. Upgradeable ppb sensitivity can be purchased quickly and easily. CubDoc docking stations are available for USB communication, charging and calibrating your instrument, dependent on your requirements.

Best available PID detection

  • PID independently verified as best performing on the market
  • Unrivaled sensitivity with the widest detection range, from 1 ppb to 5,000 ppm
  • Measures over 480 selectable compounds (10.6 eV lamp)
  • In-built humidity resistance with no need to compensate and anti-contamination design for extended field operation


  • Fast (<13 seconds response to hazardous gases vapours)
  • Clear audio, visual and vibrating alarms, large LCD display for clear readings
  • Longest battery life (16 hours)
  • Meets ATEX, IECEx, North American and Canadian standards

Easy of use

  • Simple one button operation
  • Intuitive software and simple calibration routine
  • Easy to service, easily upgrade your instrument


Cub is available in three distinct variants: choose a ppb or ppm instrument with 10.6 eV lamp for accurately detecting a wide range of VOCs dependent on your sensitivity requirements.

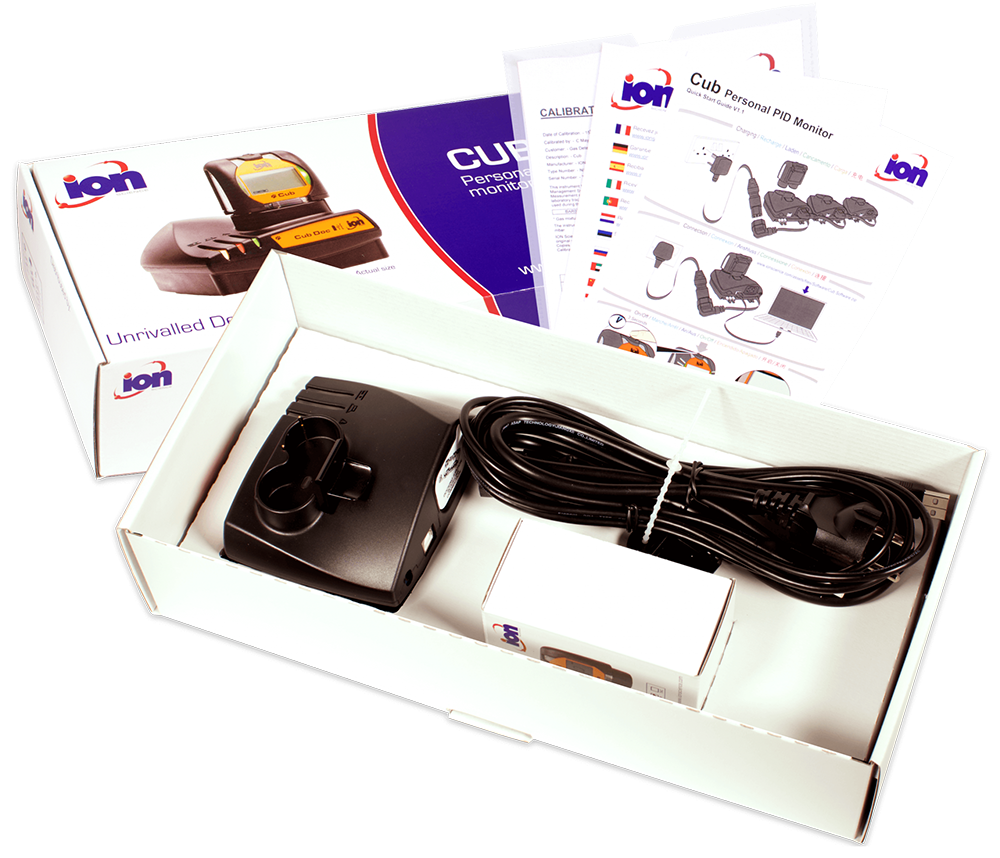

What’s included

  • Cub instrument
  • Docking station
  • Rechargeable battery (Li-ion)
  • Remote calibration adaptor
  • Accessory kit
  • Stack removal tool
  • Mains cable
  • USB cable
  • Quick start guide
  • Calibration certificate
CUB kit
2 Items
Ion Science
ppm 0,01 - ppb 0,001 - TAC 0,01
Response time
<13 seconds
10.6 eV, 10.0 eV
± 5% + 1 digit
Battery life
Battery life up to 16 hours, battery charge time 4 hours
Data logging
30.000 readings
From –20°C to 55°C (from -4°F to 131°F)
H:61 mm L:66 mm P:59 mm
0,001 ppm o 0,1 ppm (based on the model)
2 point calibration via docking station
Europe: ATEX: CE,Ex II 1G, Ex ia IIC T4; US and Canadian approvals: Class I, II and III, Division I, Hazardous
LEDs, audio and vibrate. Sounder 95 dB @ 300 mm. Pre-programmed TWA & STEL.
Classificazione IP
IP65** (heavy rain)
USB 2.0
