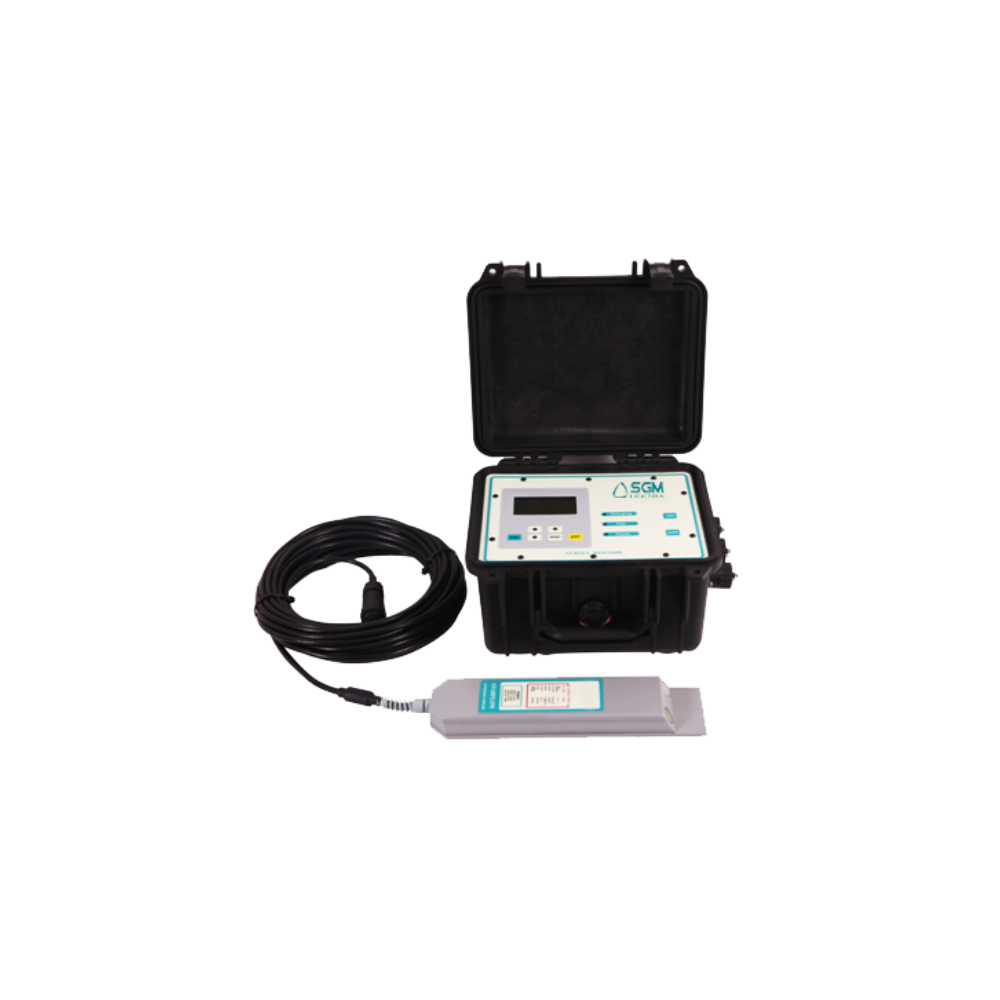

SGM-600P - Portable area velocity flowmeter

Available on order
€6,198.18
Tax excluded
Range
Outputs

If you need a customized offer, or you can't find the configuration you need, do not hesitate to contact us.

We also offer the post sale services

  • Ordinary and extraordinary maintenance
  • Installation
  • Workers training
  • Spare parts
  • Calibration
Description

Ideal for flow measurement in partially filled pipes without power supply

The SGM-600F is suitable for flow measurement in partially filled pipes, drainage channels, man-made channels, waterways, drainage ducts, etc. The instrument is composed of a flow calculator, a speed transducer (with a doppler effect) and level. SGM-600F can display speed, level, flow rate and totalizer. It can record flow and total flow data on an SD card up to 16 GB.

SGM-600F can calculate the cross-sectional area of partially filled pipes, open channel or river, and up to 20 coordinate points can be entered to describe cross-section of the river or channel with irregular shape. The velocity and level transducer integrates in it the instruments for measuring water speed, depth and temperature.

SGM-600F is an indispensable instrument for flow measurement in all those applications where there is no hydraulic projection in the channel or in the pipe.

SGM Lektra
SGM-600P1C5A
Accuracy
± 2%
Range
0,021 - 4,5 m/s
Classificazione IP
Transmitter: IP66. Transducer: IP68
Battery autonomy
40 h
