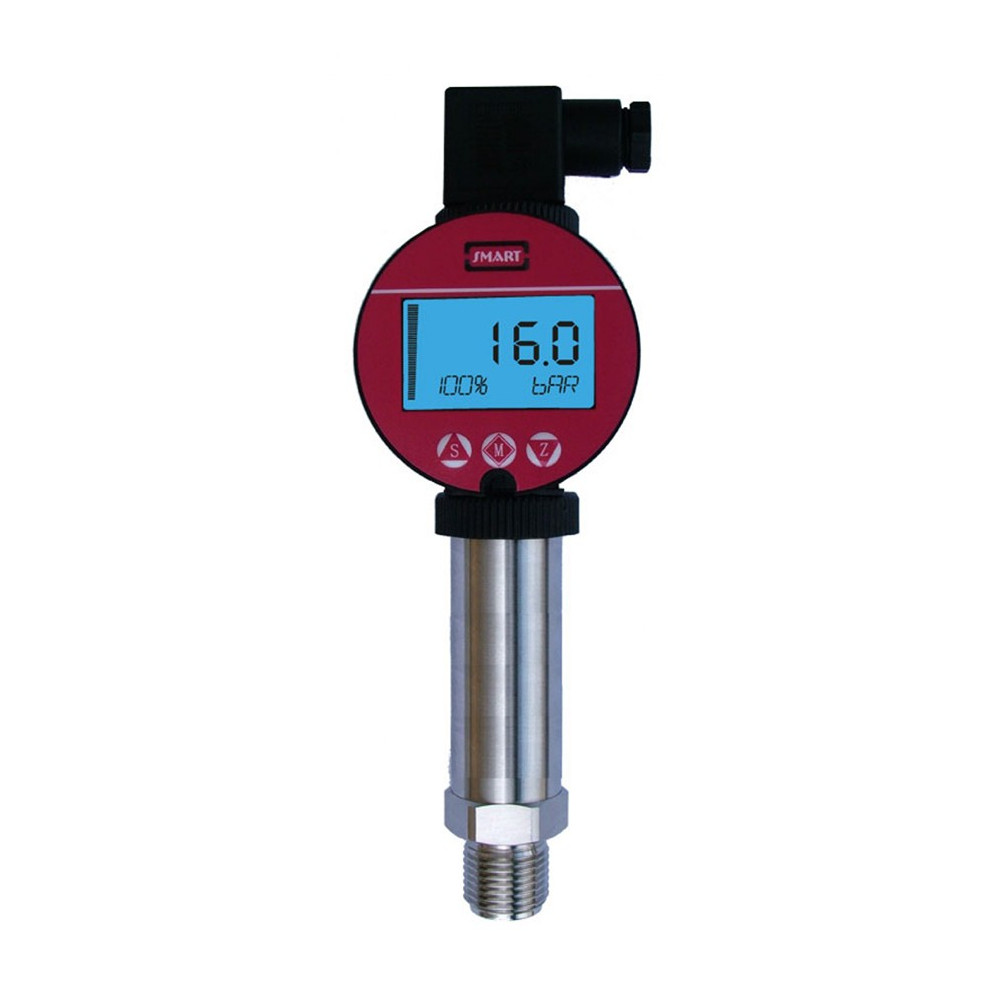

KPT - Gauge or absolute pressure transmitters

Last items in stock
€163.80
Tax excluded Delivery in 3-4 working days
Range

If you need a customized offer, or you can't find the configuration you need, do not hesitate to contact us.

We also offer the post sale services

  • Ordinary and extraordinary maintenance
  • Installation
  • Workers training
  • Spare parts
  • Calibration
Description

The units of the KPT series are aimed at aqueduct applications and installations on food plants: a result particularly suitable for measurements in liquids, gases and vapors with male / female threaded connections, sanitary and vacuum clamps.

KPT is suitable for continuous liquids level measurement: typical application are waste water and deep wells. KPT is a pressure transmitter which can be used for the liquids, gases, and vapors measurement. The small size pressure transducer offers maximum operational reliability. KPT is an inexpensive solution for many different applications in all industrial process control.

Features

  • 2-wired 4÷20mA transmitter
  • Pressure Classification: absolute, negative, gauge
  • Accuracy: on request 0.25%
  • Heavy applications suitable
  • Any position installable
  • Compact transmitter
2 Items
SGM Lektra
KPTDD1A40
Temperature
From -30°C to +120°C
Range
Absolute pressure: max. 0 ÷ 25bar (0 ÷ 2,5MPa), min. 0 ÷ 1bar (0 ÷ 100kPa)
Gauge pressure: max. 0 ÷ 400bar (0 ÷ 40MPa), min. 0 ÷ 0.1bar (0 ÷ 10kPa)
Negative pressure: max. -1 ÷ +39bar (-0.1 ÷ 3,9MPa), min. -0.2 ÷ 0,2bar (-20 ÷ 20kPa)
Classificazione IP
IP65
Power
12÷42Vdc (2-wires)
Output
4÷20mA
Stability
> ±0.1%FS 12 months
