CORIO CD-600F - Refrigerated/heating circulator

Last items in stock
€4,643.70
Tax excluded Delivery in 3-4 working days

If you need a customized offer, or you can't find the configuration you need, do not hesitate to contact us.

We also offer the post sale services

  • Ordinary and extraordinary maintenance
  • Installation
  • Workers training
  • Spare parts
  • Calibration
Description

Refrigerated - Heating Circulators

JULABO refrigerated and heating circulators are suitable for temperature application to external systems with simultaneous operation in the bath tank. Models in different performance classes are available. The units provide high heating/cooling capacities to ensure rapid heat-up and cool-down times.
With"Active Cooling Control" to +200 °C. "FP models" offer proportional cooling control to ensure energy-saving performance and to reduce heat generation to the environment. Convenient cleaning of dust by removable venting grid.
Some models have a handle or castors to allow easy transport. All models provide a drain port on the front for conveniently draining the bath fluid. Typical applications: temperature applications to external, closed systems, such as for example photometers, refractometers, viscometers, etc...
For simultaneous application to small objects in the circulator bath.

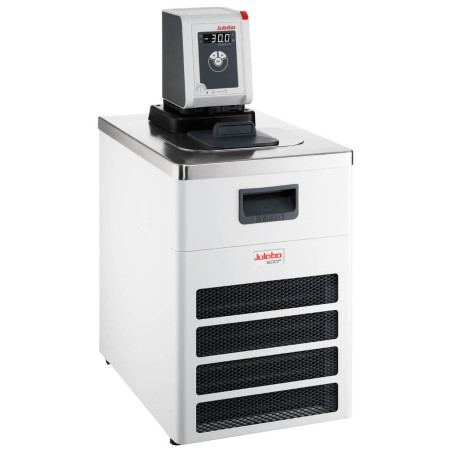

CORIO CD-600F refrigerated/heating circulator

Refrigerated / Heating Circulators of the new CORIO series distinguish themselves with a great price-to-performance ratio. They are ideal for all standard tasks and routine work in laboratories and industry.

Advantages

  • Models for internal and external applications
  • Bright, white, easy to read display
  • Very quiet
  • Easy pump change-over (internal and external circulation)
  • External pump connections (M16x1)
  • USB connection
  • Space-saving cooling coil design yields more usable space in the bath tank
  • Bath lid and drain tap included
  • Removable ventilation grid
  • Refrigeration unit without side vents
  • Class III (FL) according to DIN 12876-1
1 Item
Julabo
9012704
Range
Pump capacity: 15 l/min
Flow rate
Pump capacity flow pressure: 0,35 bar
Temperature
From -35°C to +150°C
Dimensions
Bath H:220 mm L:150 mm P:150 mm
Instrument H:330 mm L:470 mm P:690 mm
Weight
36 kg
Connection
M16x1
Capacity
Cooling (ethanol): 20/0/-10/-20/-30 °C - 0.6/0.53/0.35/0.22/0.1 kW
Heating: 2kW
Material
Stainless steel
Display
LED, resolution 0.01 – 0.1 °C
Stability
Temperature_ ±0.03°C
Control system
PID
Volume
Filling 5-7.5 L
Refrigerant stage 1: 200g
Compressor
Air
