Ultrasonic flow meter PCE-TDS 200 L-ICA

Ultrasonic flow meter PCE-TDS 200 L-ICA

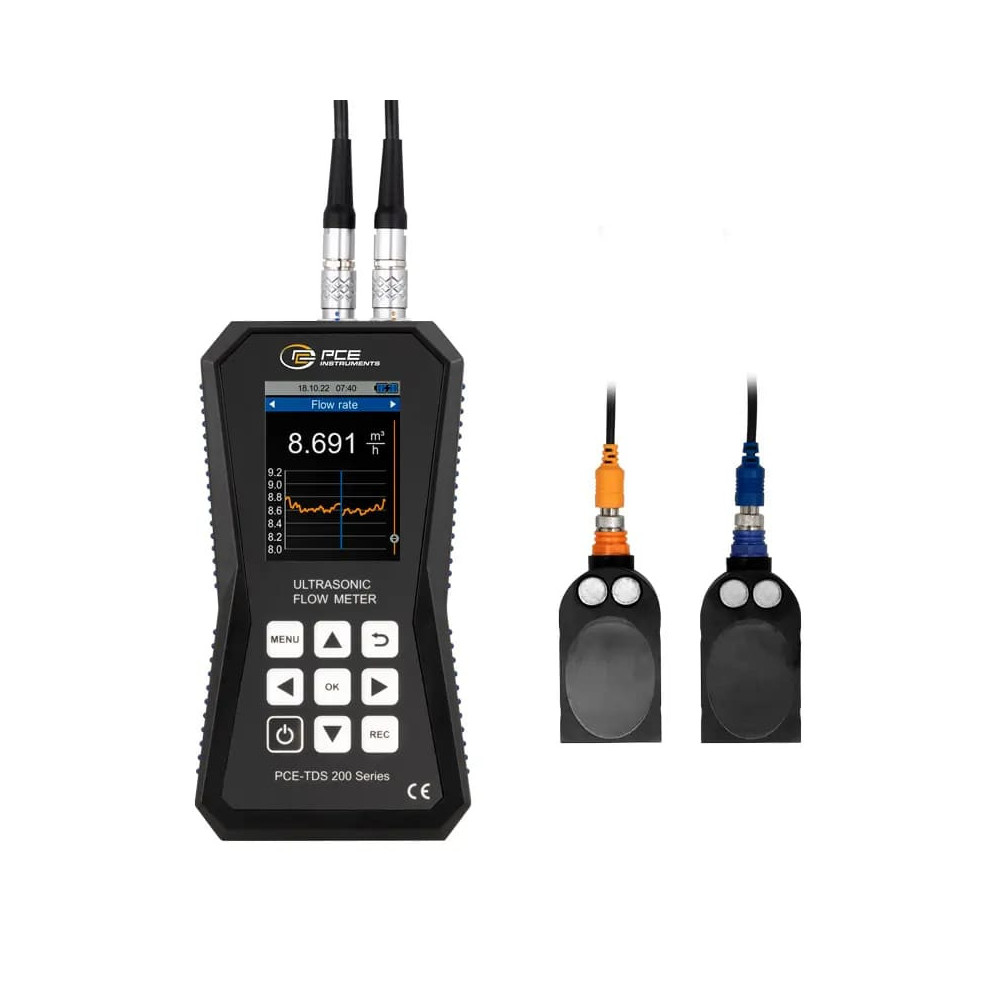

Our 32 GB ultrasonic flow meter offers a wide measurement range of up to ±32 m/s with exceptional accuracy and ±0.5% reproducibility. It's suitable for various substances and includes a built-in alarm. The 2.8" LCD display ensures easy reading.

Thanks to its high precision, this ultrasonic flow meter is suitable for both large pipes (≥50) with ±1.5% accuracy and smaller pipes (DN <50) with ±3.5% accuracy. Installation is simplified with a guided menu indicating signal quality and sensor positioning. The flow meter displays data in different units, including m³, l, gal, igl, mgl, cf, bal, ib, and ob.

Measurement data can be stored in the 32 GB internal memory, with the option to set recording intervals from 1 second to 12 hours, allowing storage of up to 10 million data points. Optional software enables viewing, analysis, and data export in various formats, including *.csv and PDF. Flow meter management is simplified through the software, which also allows real-time data monitoring.

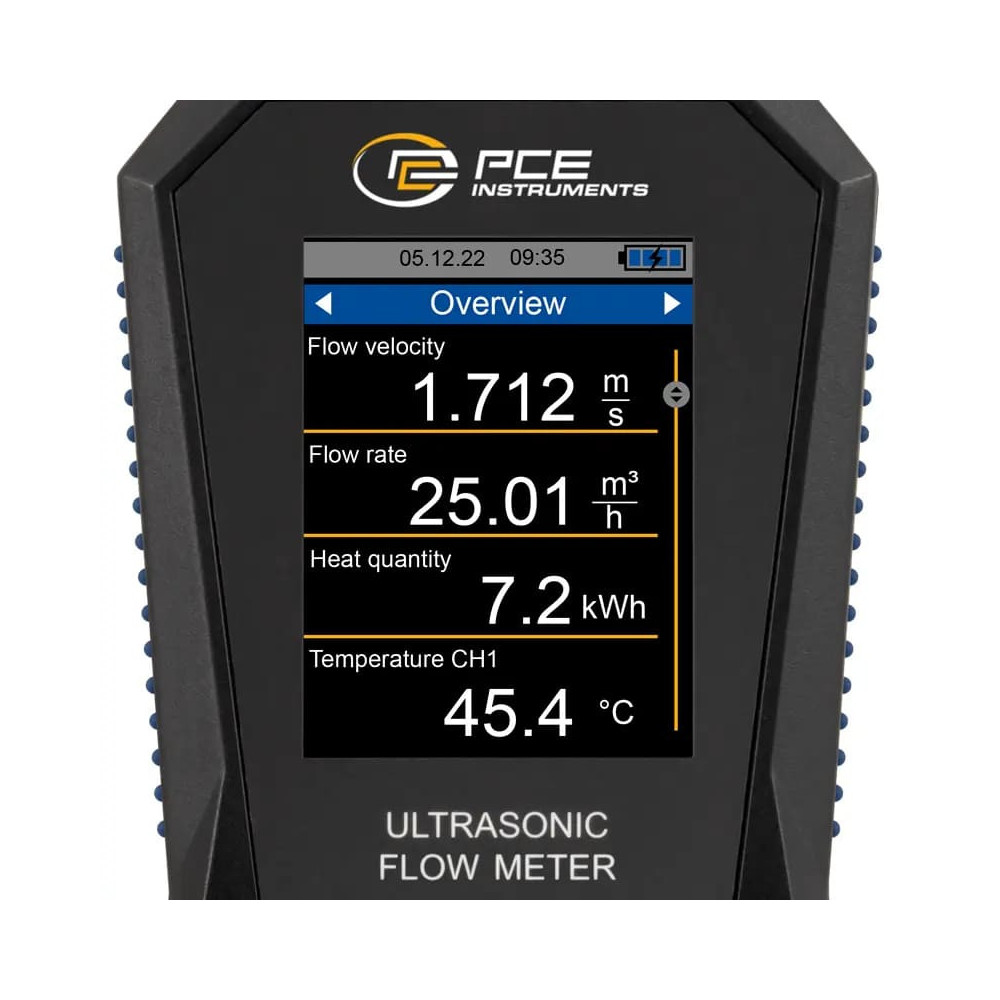

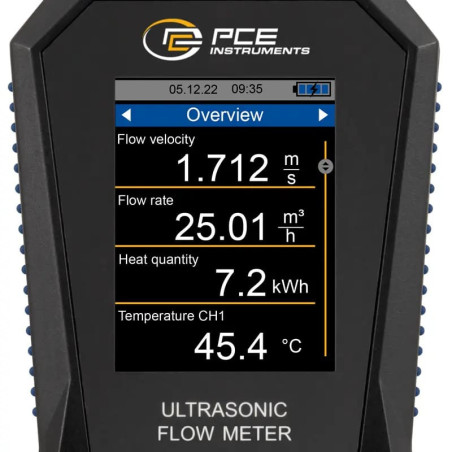

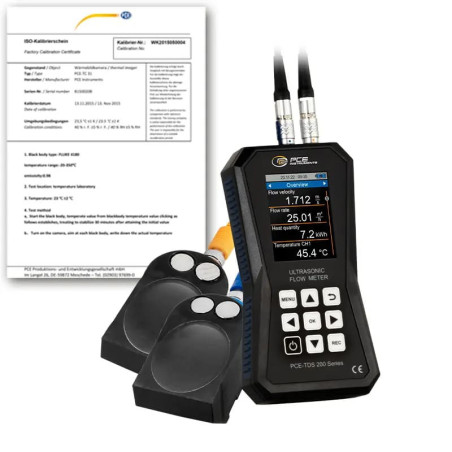

The 2.8" color LCD display ensures clear visibility, and the device comes with an included ISO calibration report.

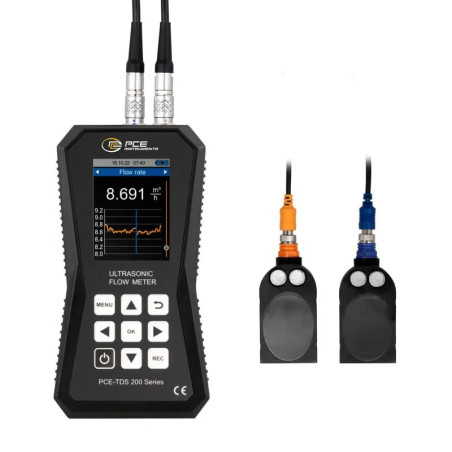

Additionally, we offer the PCE-TDS 200 L SENSOR for large pipes with a diameter ranging from DN 300 to 6,000 mm. These sensors can be easily mounted using Velcro straps and are suitable for ferrous metallic pipes thanks to built-in magnets. The sensor dimensions are 91 x 52 x 44 mm.

20 Items
0,001 m/s
Battery life
About 10 hours
165mm x 85mm x 32mm
±32 m/s
LiPo battery; 3.7V; 2500mAh
Pair of PCE-TDS 200 L SENSOR
Measurements Units
Dimensions mm / in
Flow velocity m/s / ft/s
Timeline seconds / minutes / hours / days
Volume flow m / l / gal / igl / mgl / cf / bal / ib / ob
Volume m / l / gal / igl / mgl / cf / bal / ib / ob
32GB / 10 million values
Measurement method
Z / V / N / W
DN greater than/equal to 50 mm equal to ±1.5% of the measurement value for speed greater than 0.3 m/s
DN greater than/equal to 50 mm equal to ±1.5% of the measurement value for speed greater than 0.3 m/s
Water; Sea water; Oil; Raw; Methanol; Ethanol; Diesel; Gas; Petrolium; Customized; Any liquid with an impurity of less than 5%
