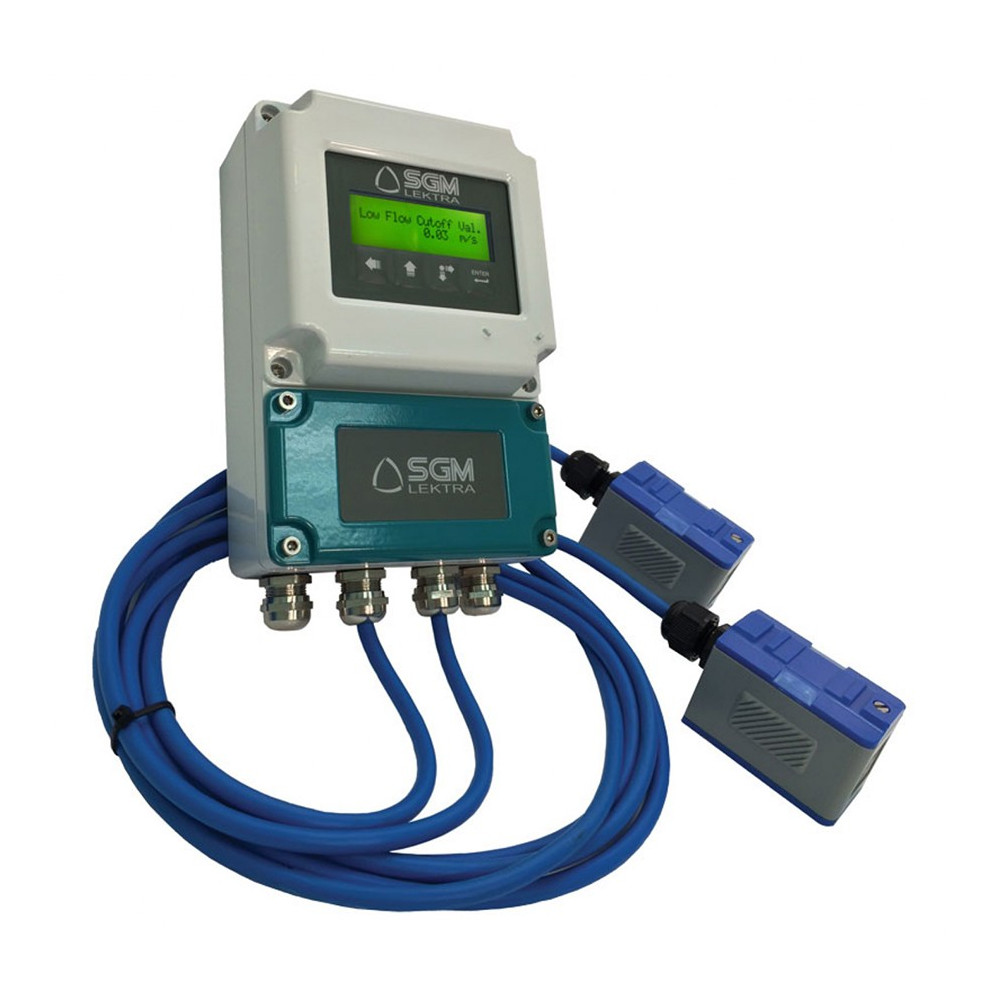

SGM-101F - Transit time ultrasonic flowmeter

Last items in stock
€1,196.44
Tax excluded Delivery in 3-4 working days
Transducers

We also offer the post sale services

  • Ordinary and extraordinary maintenance
  • Installation
  • Workers training
  • Spare parts
  • Calibration
Contact us for service
Add to wishlist
Description

The SGM-101F flowmeters operate on the ultrasonic pulses transit time difference principle. The great advantage is the mechanical installation, because it is not necessary to cut the pipe.

The sensors are simply clamped on the outer pipe surface, for this reason the pressure and the liquid aggressiveness to be measured are not a problem for the flowmeter. The system measures in a bidirectional way and is suitable for clean or slightly dirty liquids.

Types of transducers

The model on sale can be paired with transducers for pipes from DN20 to DN4000 depending on the model selected. The transducers also include the fixing straps to the pipe and the 5m connection cables..

Features

  • For conductive and non-conductive liquids
  • Measure range from <0,2m3/h to >400000 m3/h
  • Rande from DN20 to DN4000
  • MODBUS protocol (opt.)
  • Typical measurement accuracy ± 1%
  • 24; 115; 230Vac or 10÷30Vdc power supply
  • 4÷20mA, pulse and alarm output
  • IP68 sensors also for high temperatures
  • Datalogger
  • Heat meter
1 Items
SGM Lektra
SGM-101FWAA0--NA
Range
Piping: 20mm÷4000mm
±12m/s
Accuracy
±1%
Temperature
From -30°C to +60°C
Dimensions
H:200 mm L:120 mm P:77 mm
Weight
1 kg
Classificazione IP
Transmitter: IP66. Transducer: IP68
Power
230Vac or 10÷30Vdc (depending on model)
Humidity
on condensing 85% RH (40°C)
Output
Relay output: n.1 for pulse totalizer or alarm
Sel. 4÷20m A or 0÷20mA
Repeatability
±0,2÷0,5%
Display
Istantaneous flowrate, flow totalizer
