Ultrasonic flow meter PCE-TDS 200 ML-ICA

Ultrasonic flow meter PCE-TDS 200 ML-ICA

€2,774.28

In-stock
Description

The Ultrasonic Flowmeter delivers precision and versatility in fluid measurement. With a wide measurement range of ±32 m/s and an accurate reproducibility of ±0.5% of the measurement value, this instrument stands out for its reliability.

Equipped with a 32 GB internal memory, the flowmeter allows you to record measurement data, with the option to customize the recording interval from 1 second to 12 hours. This extensive storage space can hold up to 10 million data points.

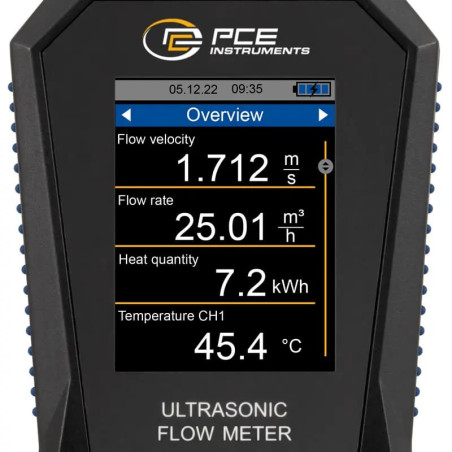

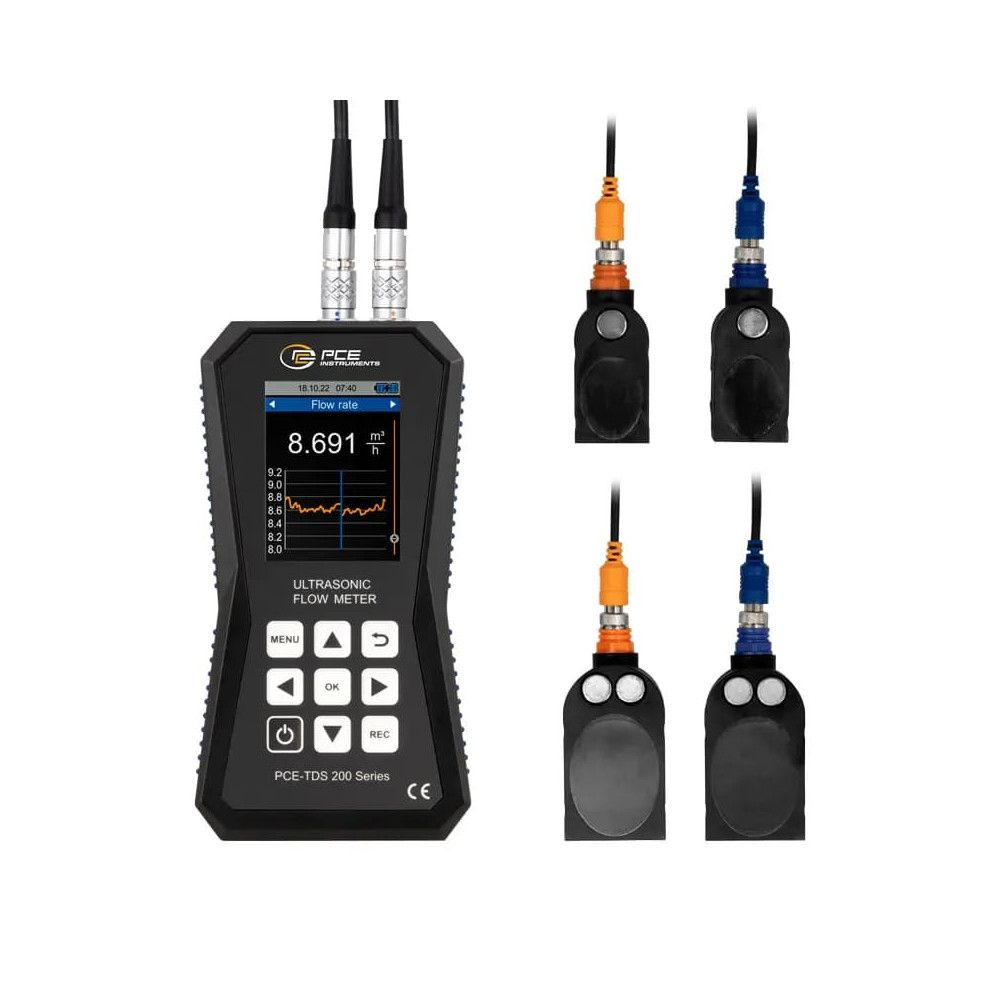

The 2.8" LCD display provides a clear view of the results, while optional software enables in-depth analysis of stored data. Data can be exported in *.csv format, and PDF reports can be generated for optimal management.

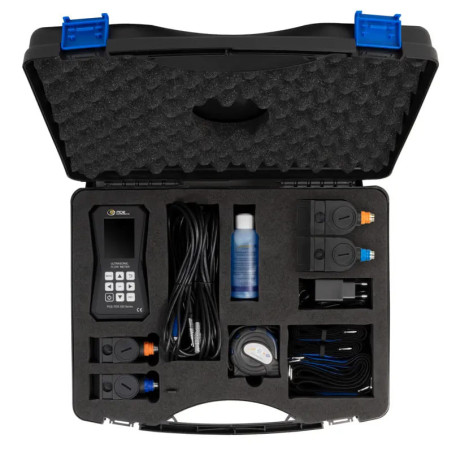

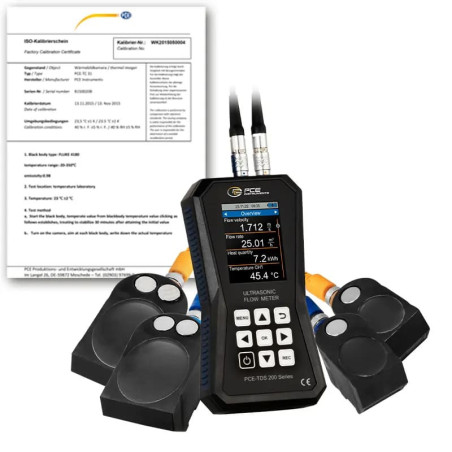

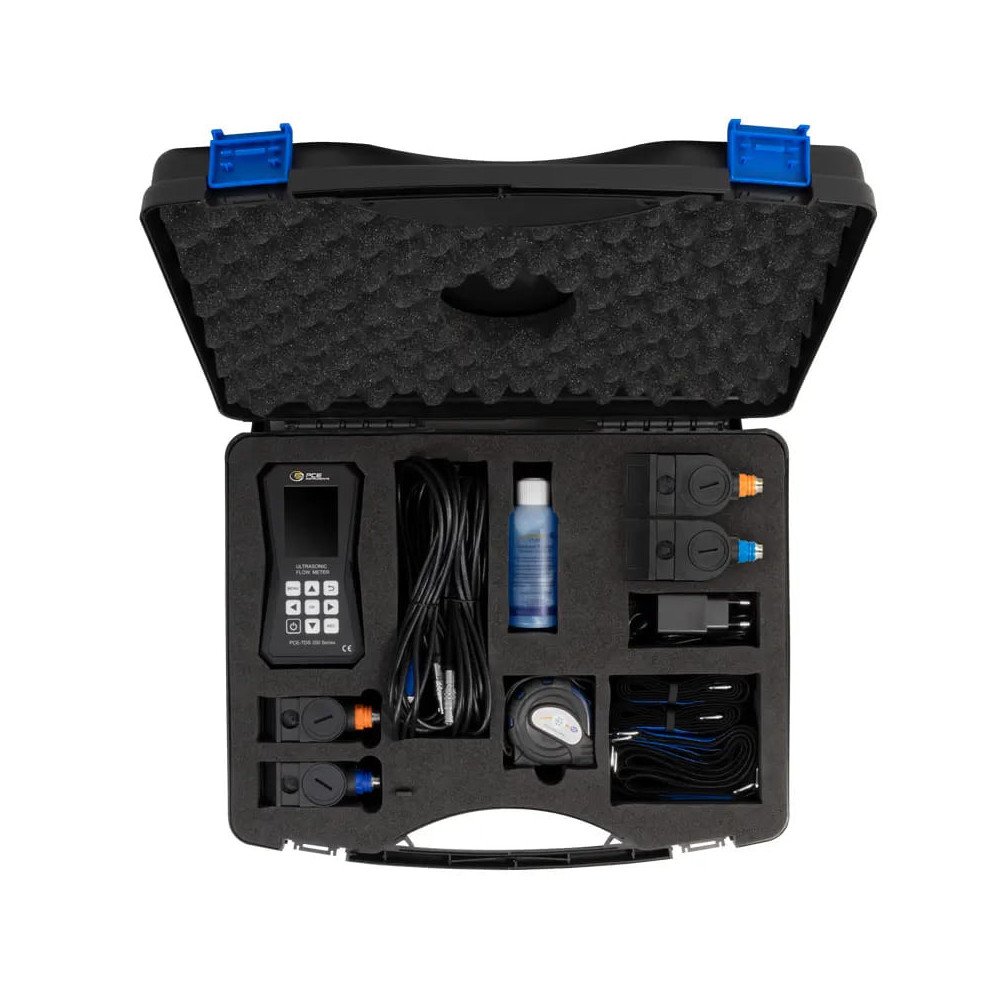

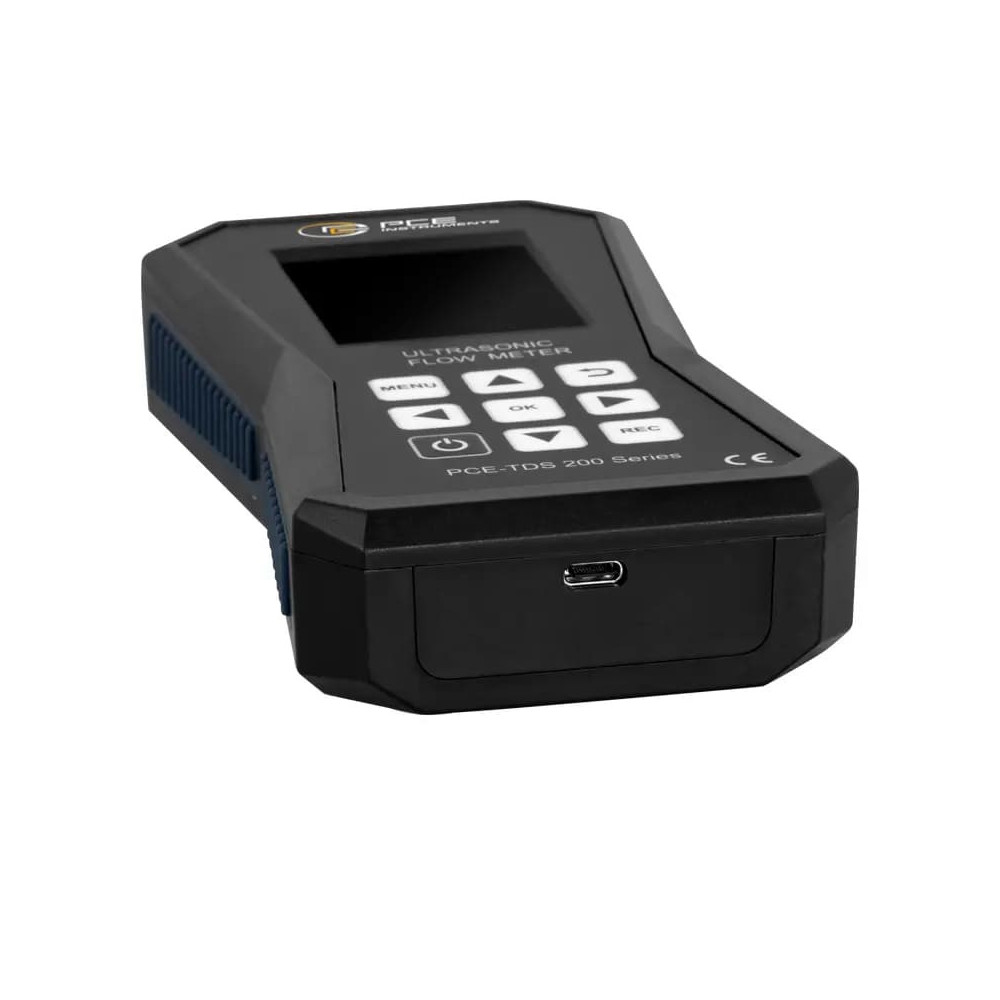

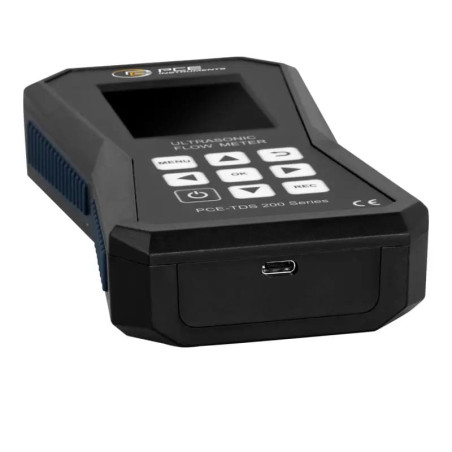

The flowmeter comes complete with an ISO calibration report and features a USB-C interface for data transfer. With various types of probes available and the ability to measure any type of substance, this instrument adapts to a wide range of measurement needs.

The Ultrasonic Flowmeter is a reliable and precise device, ideal for real-time monitoring of flow, flow rate, and volume in various units of measurement, ensuring smooth and efficient data management.

20 Items
PCE
4250348731364
Resolution
0,001 m/s
Battery life
About 10 hours
Temperature
-30 ... 160 °C
Dimensions
165mm x 85mm x 32mm
Weight
255g
Range
±32 m/s
Power
LiPo battery; 3.7V; 2500mAh

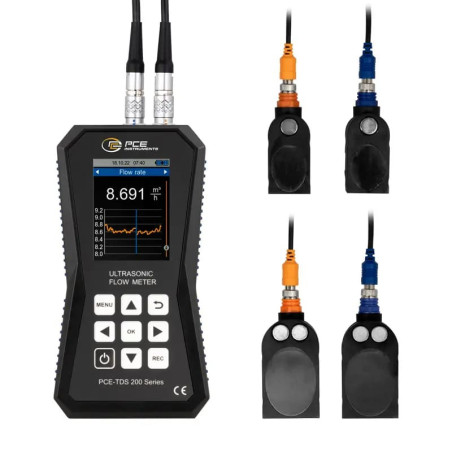

Detector

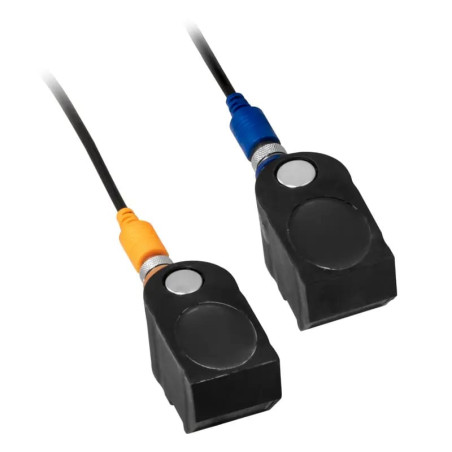

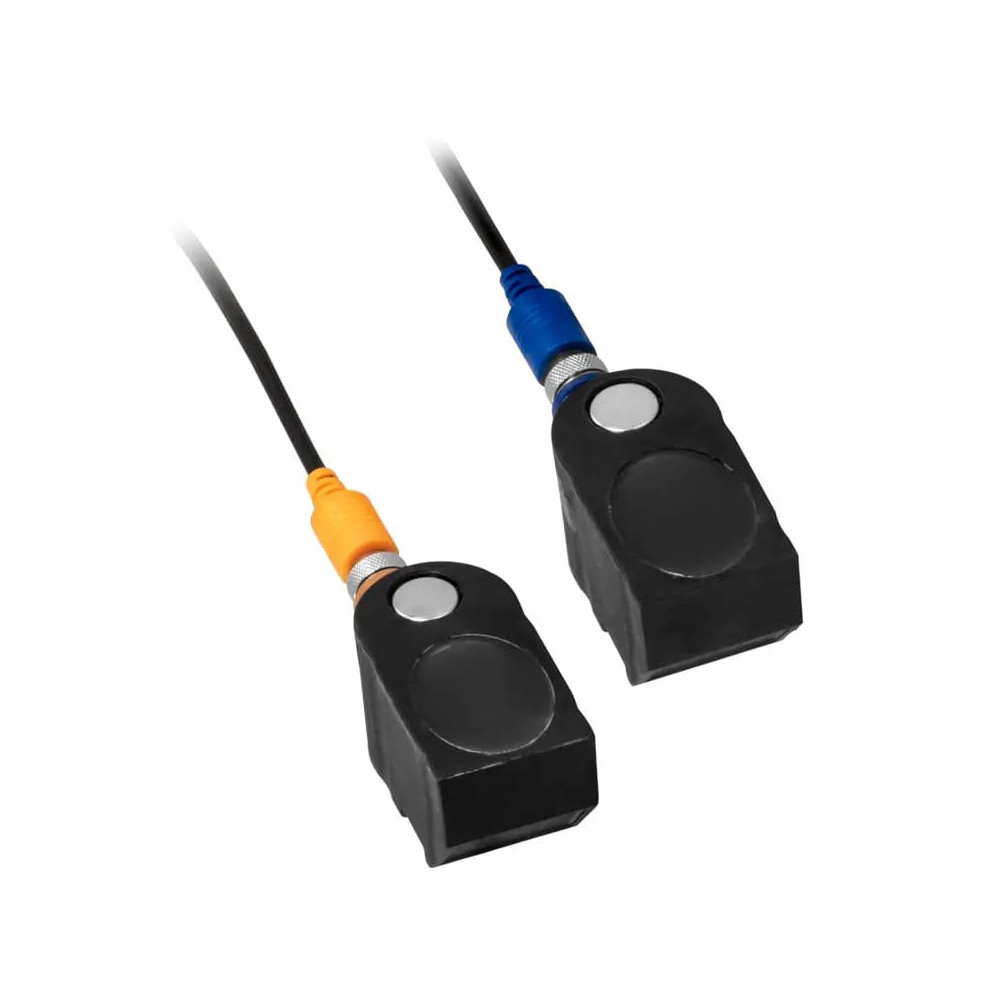

Pair of PCE-TDS 200 L SENSOR sensors

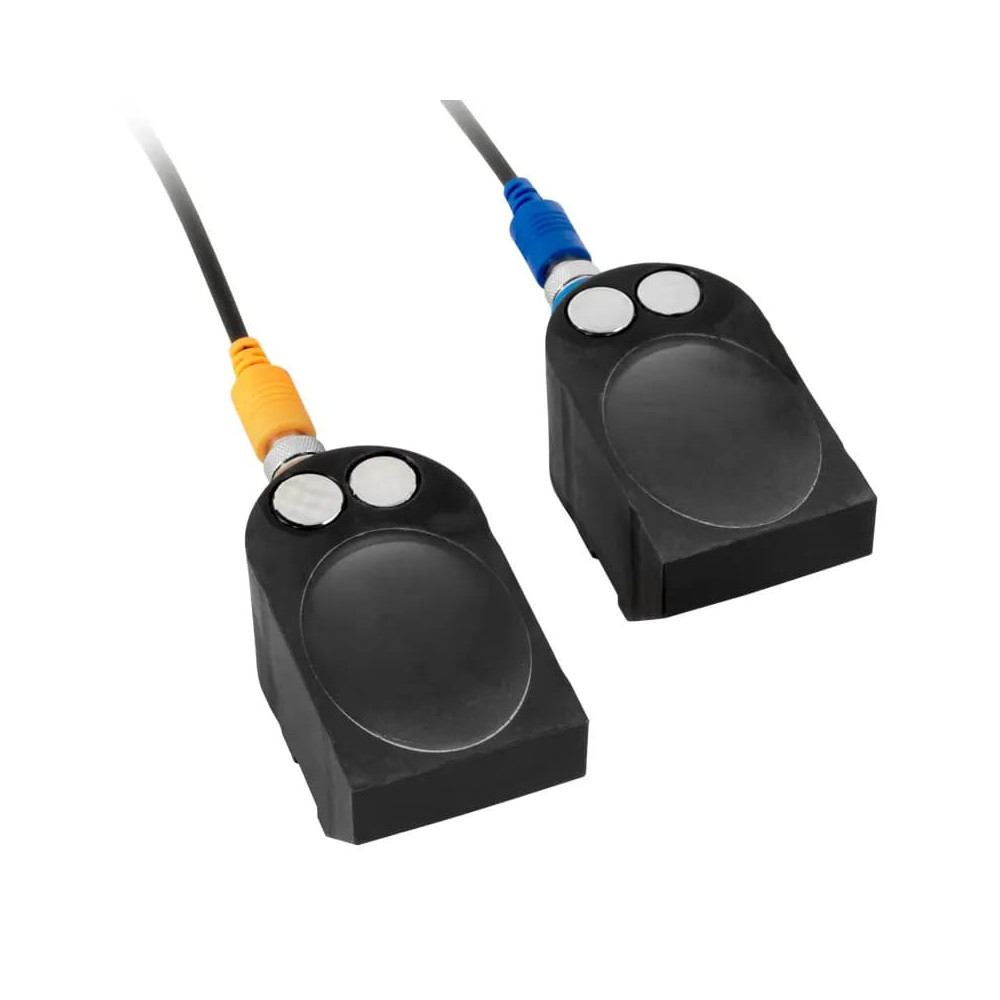

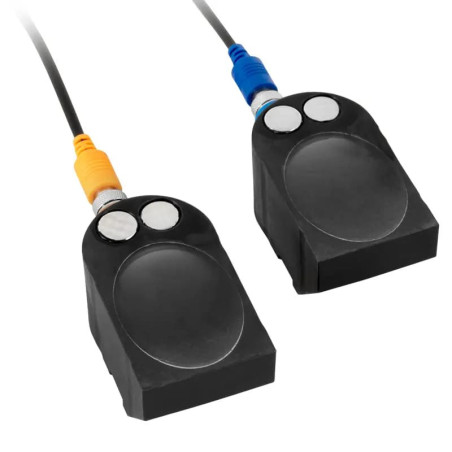

Pair of PCE-TDS 200 M SENSOR sensors
Memory
32GB / 10 million values
Precision
DN greater than/equal to 50 mm
substances
Water; Sea water; Oil; Raw; Methanol; Ethanol; Diesel; Gas; Petrolium; Personalized
Tube material
External: Copper CU; FE steel; VA stainless steel; AL aluminium; Brass ME; Molten iron CI; Iron FE; Nickel NI; Titanium TI; Zinc ZI; Acrylic AC; Polyethylene PE; PP polypropylene; PVC polyvinyl chloride; Nylon NY; Personalized
Interior: Without lining; Epoxy resin; Eraser; Malta; Polystyrene PS; Polyethylene PE; Polytetrafluoroethylene PTFE; PU polyurethane; PP polypropylene; Personalized
