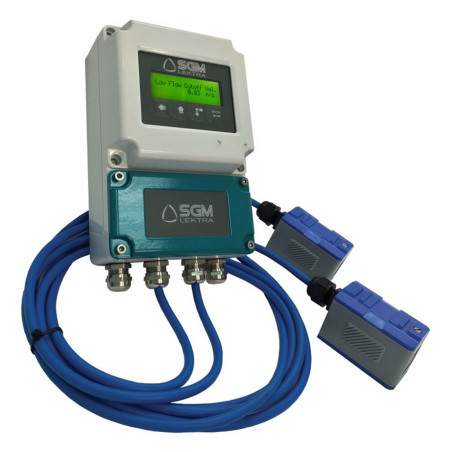

SGM-101F - Transit time ultrasonic flowmeter

€1,605.69

Description

The SGM-101F flowmeters operate on the ultrasonic pulses transit time difference principle. The great advantage is the mechanical installation, because it is not necessary to cut the pipe.

The sensors are simply clamped on the outer pipe surface, for this reason the pressure and the liquid aggressiveness to be measured are not a problem for the flowmeter. The system measures in a bidirectional way and is suitable for clean or slightly dirty liquids.

Types of transducers

The model on sale can be paired with transducers for pipes from DN20 to DN4000 depending on the model selected. The transducers also include the fixing straps to the pipe and the 5m connection cables..

Features

For conductive and non-conductive liquids
Measure range from <0,2m3/h to >400000 m3/h
Rande from DN20 to DN4000
MODBUS protocol (opt.)
Typical measurement accuracy ± 1%
Power supply 230Vac or 10÷30Vdc. On request available 24 or 115V
4÷20mA, pulse and alarm output
IP68 sensors also for high temperatures
Datalogger on SD on request
Heat meter

Product Details

Brand SGM Lektra

Reference SGM-101FWAA0--NA

Range: ±12m/s
Accuracy: ±1%
Temperature: From -30°C to +60°C
Dimensions: H:200 mm L:120 mm P:77 mm
Weight: 1 kg
Classificazione IP: Transmitter: IP66. Transducer: IP68
Humidity: on condensing 85% RH (40°C)
Output: Relay output: n.1 for pulse totalizer or alarm
Sel. 4÷20m A or 0÷20mA
Repeatability: ±0,2÷0,5%
Display: Istantaneous flowrate, flow totalizer
Cable length: 5 m
