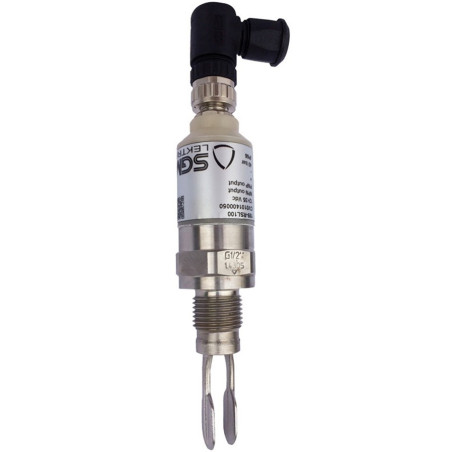

RSL 100 - Diapason level switch for liquids

In-stock
€205.20
Tax excluded Delivery in 3-4 working days
Model
Outputs

We also offer the post sale services

  • Ordinary and extraordinary maintenance
  • Installation
  • Workers training
  • Spare parts
  • Calibration
Contact us for service
Add to wishlist
Description

Suitable for control of liquids such as oils, water, paints and transparent inks, sauces, milk, liquids containing carbon dioxide, oil foaming. RSL100 is designed as a shortcut to 2 / 3 wires and for universal use in tanks and pipes.

The level switch for liquids works on the principle of the tuning fork in the air at a resonance frequency. A piezoelectric crystal is used for the excitation of the oscillation and to control the frequency. When the tuning fork is immersed in liquid, the frequency changes: this change is detected electronically and changes the exit signal. The device operates as a two-wire switch in series with the load. The simple electronic switch is operated by the liquid. The probe can also be connected to a PLC through a third terminal. The output signal can be controlled by approaching a magnet at the PVDF.

Features

  • Level control in contact
  • Suitable for liquids control
  • Material: PVDF / SS316
  • Connections: G 1”; G 3/4”; G 1/2” DIN 2999
  • IP66
  • Hysteresis: 4mm vertical, horizontal 1mm
  • Output: Contact NPN/PNP, relay SPST NO
  • Power Supply: 12 ÷ 35 Vdc
3 Items
SGM Lektra
RSL100A1A1A
Response time
1 sec voltage/clean 1 sec clean/voltage
Temperature
Max 70°C
Classificazione IP
IP66
Power
12÷35Vdc
Pressure
40 bar tra -20°C e +70°C
Process connections
G 1”; G 3/4”; G 1/2” DIN 2999
Capacity
0.5 A max (5A per 40 ms)
Drop voltage
4.5 V a 500 mA 10 V a 7.5 mA
Material
PVDF / AISI316
Viscosity
5000 cst max a 25°C
Hysteresis
4 mm vertical, 1 mm horizontal
Repeatability
± 1 mm
