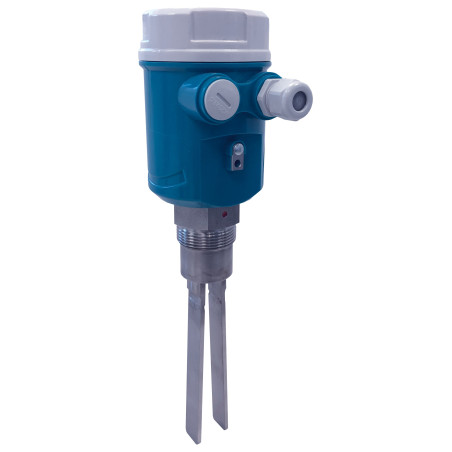

RSL200 - Powders and granulates vibrating level switches

In-stock
€294.30
Tax excluded Delivery in 3-4 working days
Certification
Power supply

If you need a customized offer, or you can't find the configuration you need, do not hesitate to contact us.

We also offer the post sale services

  • Ordinary and extraordinary maintenance
  • Installation
  • Workers training
  • Spare parts
  • Calibration
Description

The RSL200 compact tuning-fork switches levelrunning the thresholds level control with powder or granules medium. The tuning fork is electrically excited and vibrates at its resonant frequency. When the product touches the sensor, the vibration amplitude is dampened. The integrated electronics detects this damping and triggers a switching command. When the product free the tuning fork, the sensor automatically restores the normal vibration amplitude.

Vibration: on / off control

This principle is particularly indicated for use on powders and granulates when changes in electrical capacity or electrostatic charges make other principles ineffective. The operation takes place thanks to the vibration of two prongs, generated by the electronic insert, which is absorbed by the product when the latter comes into contact with the vibrating tines. The electronic insert is removable and can be powered with any voltage. The calibration is completely digital, by means of two buttons and allows to select the type of alarm (max / min), the sensitivity (high / low) and the delay time (1s / 4s).

Features

  • Level measurement with medium contact
  • For granules and powder measurement
  • Max. or Min. level control
  • G1"1/2 Threaded connections
  • IP66 mechanical protection
  • ATEX certified versions availability
  • Relay SPTD output
  • Universal AC/DC power supply unit
5 Items
SGM Lektra
RSL200A0F1A
Response time
1s o 4s
Temperature
From -40°C to +150°C
Weight
1,5 kg
Allarme
Output status detection mode
Classificazione IP
IP66
Pressure
Max 25 bar
Output
Relè 250Vac 5A max
Process connections
1” 1/2 GAS in AISI316
Power consumption
Max. 0,5W (Vdc); max. 5 VA (Vac)
Density
Min 20g/dm3
Grain size
Max 12mm
