YES AIR - 8 Channel IAQ Monitor

Model

We also offer the post sale services

Ordinary and extraordinary maintenance
Installation
Workers training
Spare parts
Calibration

Description

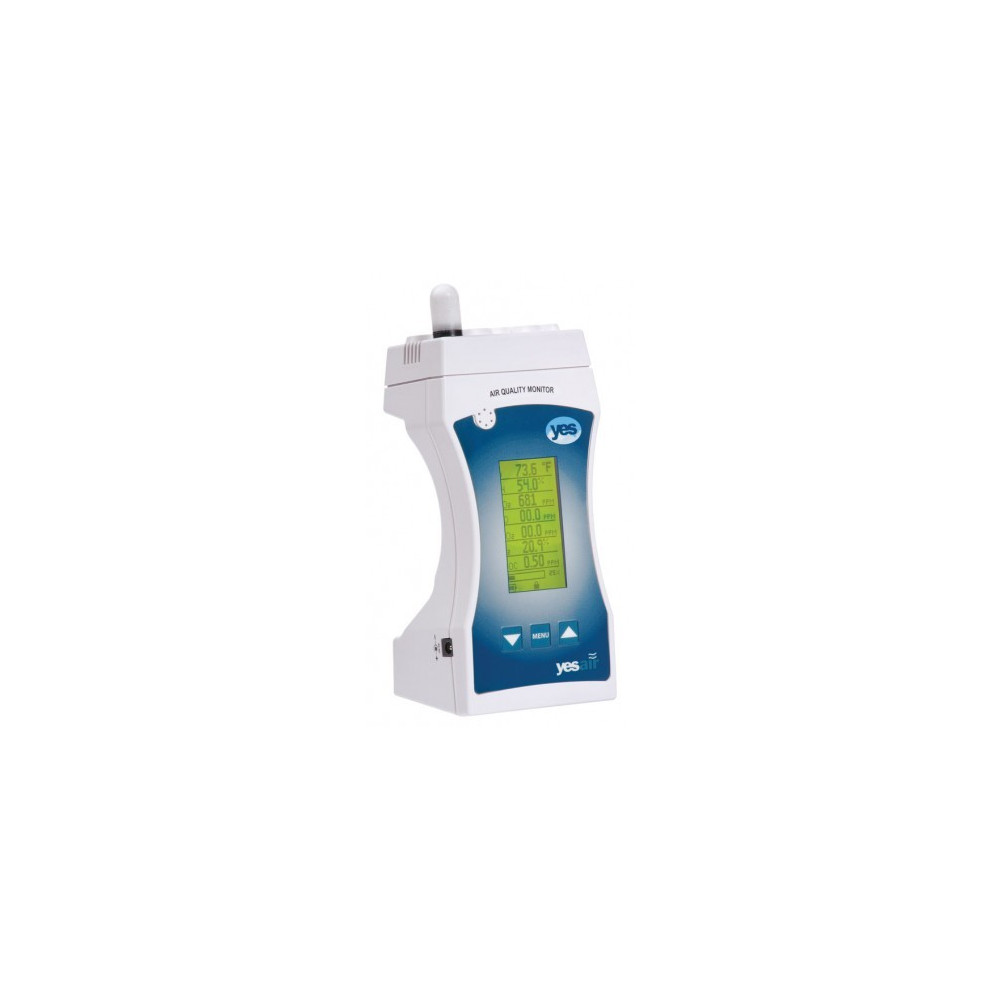

8 Channel IAQ Monitor

The YES AIR is a battery powered, portable air quality detection and data logging instrument designed for intermittent or continuous indoor air quality monitoring.

Available in two models (Pump or Di fusion), each offers multi-channel operation, a selection of more than 30 different plug and play sensors (including a particulate sensor) and a huge capacity data logging SD memory card. Both models come with one temperature sensor, one relative humidity (RH) sensor, the capacity for 5 internal gas sensors consisting of a maximum of three electrochemical toxic gas or oxygen sensors plus two high current draw sensors such as an infrared, PID or catalytic, plus an auxiliary port for connection to the YES DUST, a general purpose particulate sensor.

Sensor readings, battery level and data logging status can be viewed live on the multi-line, backlit, LCD display. The optional YES Viewer Logger package consists of a 2 GB SD memory card with card reader, a USB cable and YES Viewer software. The card reader can be used to store or transfer data. Alternatively, data can be downloaded to a computer using the mini USB connection. The YES Viewer PC software allows users to analyze and graph data.

An optional sampling probe is available with the Pump model. The probe has a 10 inch wand and 30 inches of tubing that fits onto the nozzle and allows you to reach into areas that are di cult to access.

Models

YES-AIR pump model: internal sampling pump that automatically takes samples from the surrounding environment.
YES-AIR-D diffusion model: the air sample is spontaneously diffused to the sensors.

The indicated price refers to the purchase of the instrument only: contact us to define the sensors to be implemented and to know the final price.

Key features

Capacity for 1 temperature, 1 RH sensor and 5 internal gas sensors, plus 1 external particulate sensor
More than 30 plug & play sensors available to choose from, including electrochemical, catalytic, infrared & PID
Multi-function, easy to use menu
Light weight, contoured & comfortable to hold
LCD displays readings for all sensors, battery level and logging status » Sampling with an internal sample draw pump or by di fusion
High capacity data logging with 2GB SD memory card
Data logging software for collecting, analyzing and graphing data
RoHS compliant circuit boards
CE certified

Applications

Residential buildings
Commercial buildings
Hospitals
Schools
Airports
Research facilities

What’s included

Yes Air
Case

AVAILABLE SENSORS
Ammonia (NH3) electrochemical	0 - 50 ppm
Arsine (AsH3) electrochemical	0 - 2 ppm
Carbon dioxide (CO2) infrared	0 - 5,000 ppm
Carbon dioxide (CO2) infrared	0 - 10,000 ppm
Carbon dioxide (CO2) infrared	0 - 20% volume
Carbon dioxide (CO2) infrared	0 - 5% volume
Carbon dioxide (CO2) infrared	0 - 100% volume
Carbon monoxide (CO) electrochemical	0 - 50 ppm
Carbon monoxide (CO) electrochemical (H2 compensated for use in H2 background)	0 - 50 ppm
Chlorine (Cl2) electrochemical	0 - 5 ppm*
Chlorine dioxide (ClO2), electrochemical	0 - 1 ppm
Combustibles (catalytic)	0 - 100% LEL
Ethylene (C2H4)	0 - 200 ppm
Ethylene oxide (C2H4O)	0 - 20 ppm
Fluorine (F2) electrochemical	0 - 2 ppm*
Formaldehyde (CH2O) electrochemical	0 - 10 ppm
Hydrogen (H2) electrochemical	0 - 1,000 ppm
Hydrogen chloride (HCl) electrochemical	0 - 30 ppm*
Hydrogen cyanide (HCN) electrochemical	0 - 100 ppm
Hydrogen fluoride (HF) electrochemical	0 - 10 ppm*
Hydrogen sulphide (H2S) electrochemical	0 - 50 ppm
Methane (CH4) infrared	0 - 5% volume
Nitric oxide (NO) electrochemical	0 - 100 ppm
Nitrogen dioxide (NO2) electrochemical	0 - 5 ppm
Oxygen (O2) electrochemical	0 - 25% volume
Ozone (O3) electrochemical	0 - 1 ppm*
Phosphine (PH3) electrochemical	0 - 1 ppm
Silane (SiH4) electrochemical	0 - 50 ppm
Sulphur dioxide (SO2) electrochemical	0 - 20 ppm
TVOCs (PID)	0 - 300 ppm
TVOCs (PID)	0 - 30 ppm

*Sensors only available with YES-AIR-D diffusion model

Configurations

It is possible to configure the instrument (already supplied with temperature sensor and humidity sensor) by implementing the desired sensors listed above, but respecting the following limits::

up to 3 different electrochemical sensors;
1 PID sensor;
1 IR sensor;
1 powder sensor.

Product Details

Brand Critical Environment Technologies

Reference YES-AIR-D

Battery life: Rechargable 3.6 V NiMH battery pack (8 hours continuous operation time)
Temperature: From 10°C to 50°C
Dimensions: H:197 mm L:78 mm P:98 mm
Weight: 0,6 kg
Approvals: Standard CE I.S. EN61010 - 1:2001 (ed.2)
Connettività: USB 2.0
Power: Caricabatterie 100-240V, 50-60Hz
Memory: >1 million data points data logging to SD flash card (optional)
Humidity: 0-99% RH without condensation

Specific References

Attachments

Download

Manual YESAIR EN

Download (948.55k)
