Dynamometer PCE-DFG N 10K-ICA

Dynamometer PCE-DFG N 10K-ICA



Precision and reliability are the hallmarks of the PCE-DFG N 10K-ICA dynamometer, designed for extremely accurate tension and compression testing with exceptional resolution. This instrument proves indispensable in laboratory and industrial environments, where assessing force-distance curves, measuring breaking force, and analyzing the force required to activate controls or buttons are daily operations.

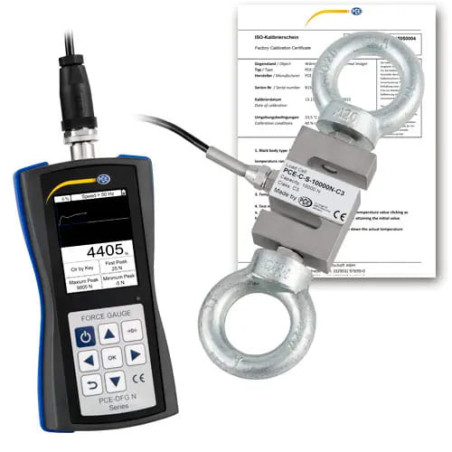

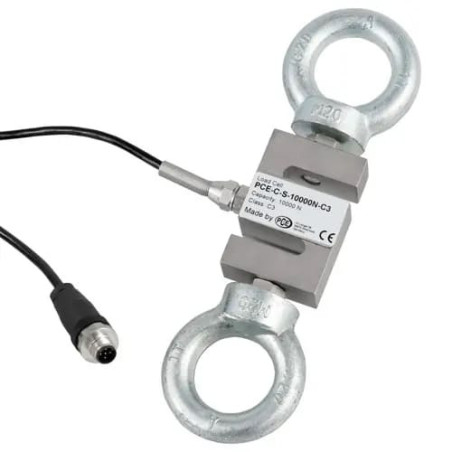

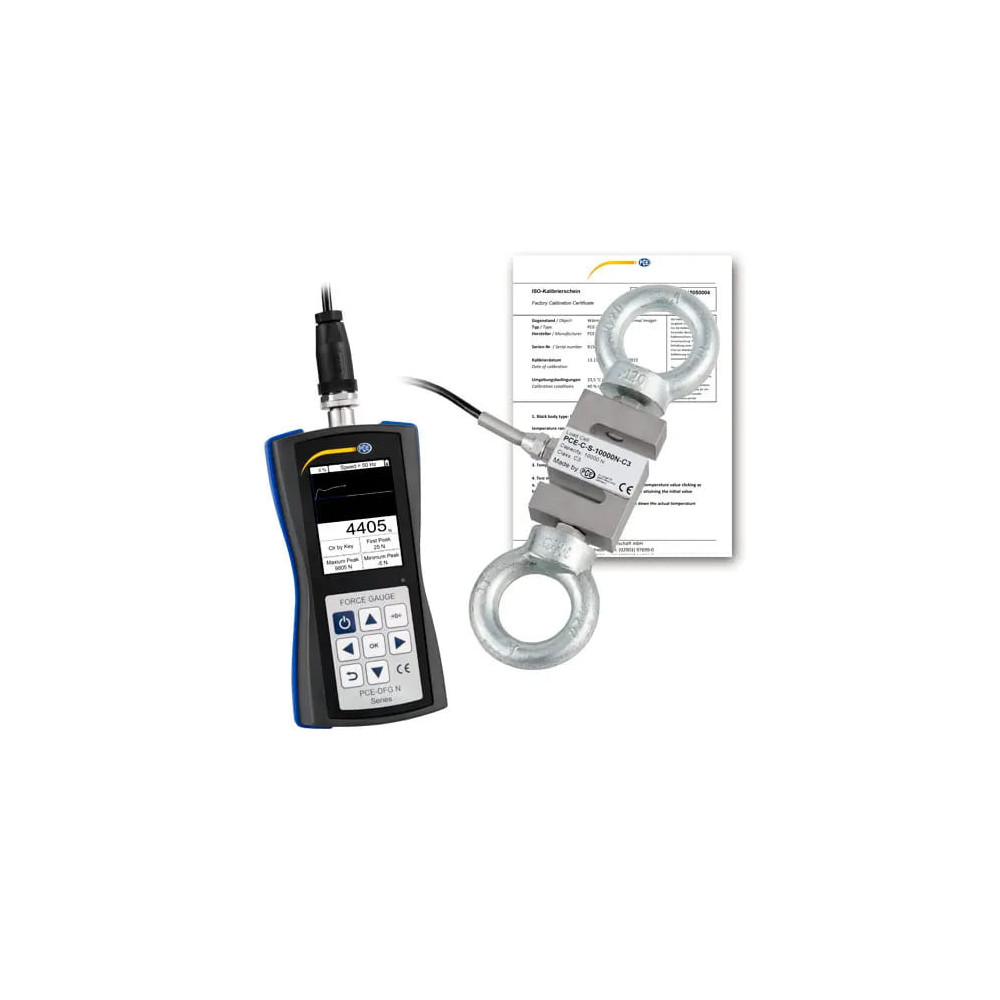

The PCE-DFG N 10K-ICA comes equipped with an external load cell that offers a substantial measurement capacity of up to 10,000 Newtons, with the versatility to customize load cells with M12 threaded pins or hooks to adapt to a wide range of devices.

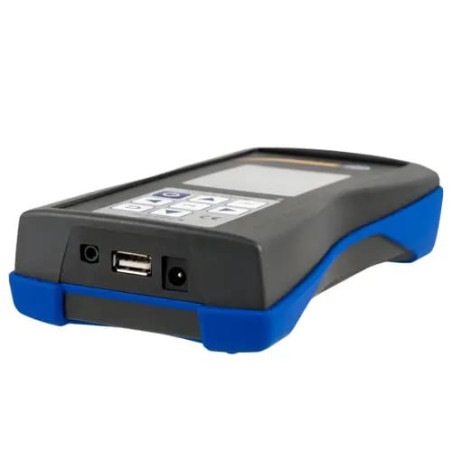

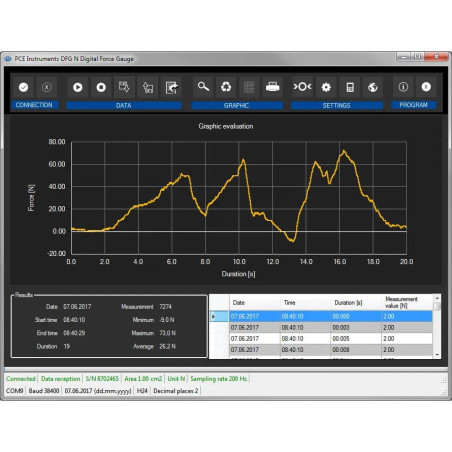

Its USB interface simplifies connection to the PC, allowing for rapid and seamless data transfer. This feature proves particularly valuable for creating measurement protocols, data storage, and exportation. Additionally, the dynamometer features an LCD graphical display that presents values in numerical and graphical formats, facilitating result interpretation.

The included ISO certification guarantees the quality and reliability of measurements taken with this instrument. Furthermore, its IP54 protection makes it suitable for use in industrial environments, even in adverse weather conditions.

A standout feature of the PCE-DFG N 10K-ICA is its ability to easily interchange load cells. Simply indicate the sensitivity in mV/V in the device, and you can connect any load cell to the same instrument.

In summary, the PCE-DFG N 10K-ICA dynamometer stands out for its exceptional precision, reliability, and flexibility, offering a complete solution for measurement needs in both laboratory and industrial settings.

20 Items
5 N
Battery life
About 10 hours
200mm x 97mm x 42 mm
540 g
0 ... 10.000 N
1 x Batteria NiMh, 6V / 1600 mAh
12 V / 1 A
Measurements Units
N, kg, lb, KPa
100 measurement series, with 8,000 values ​​per series
±0,1% F.S.
