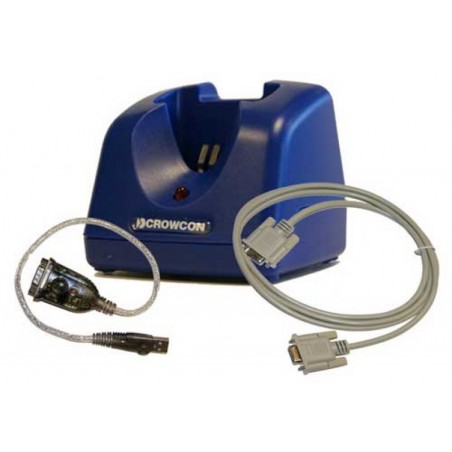

  • GasMan dock
GasMan

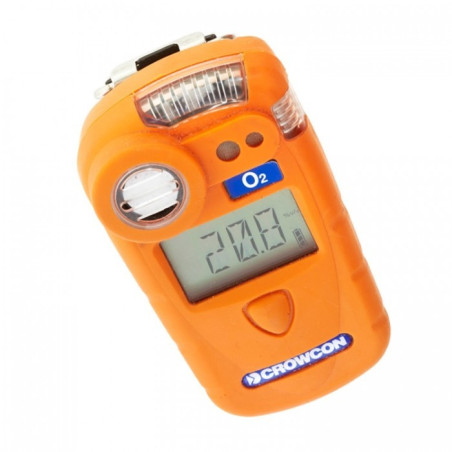

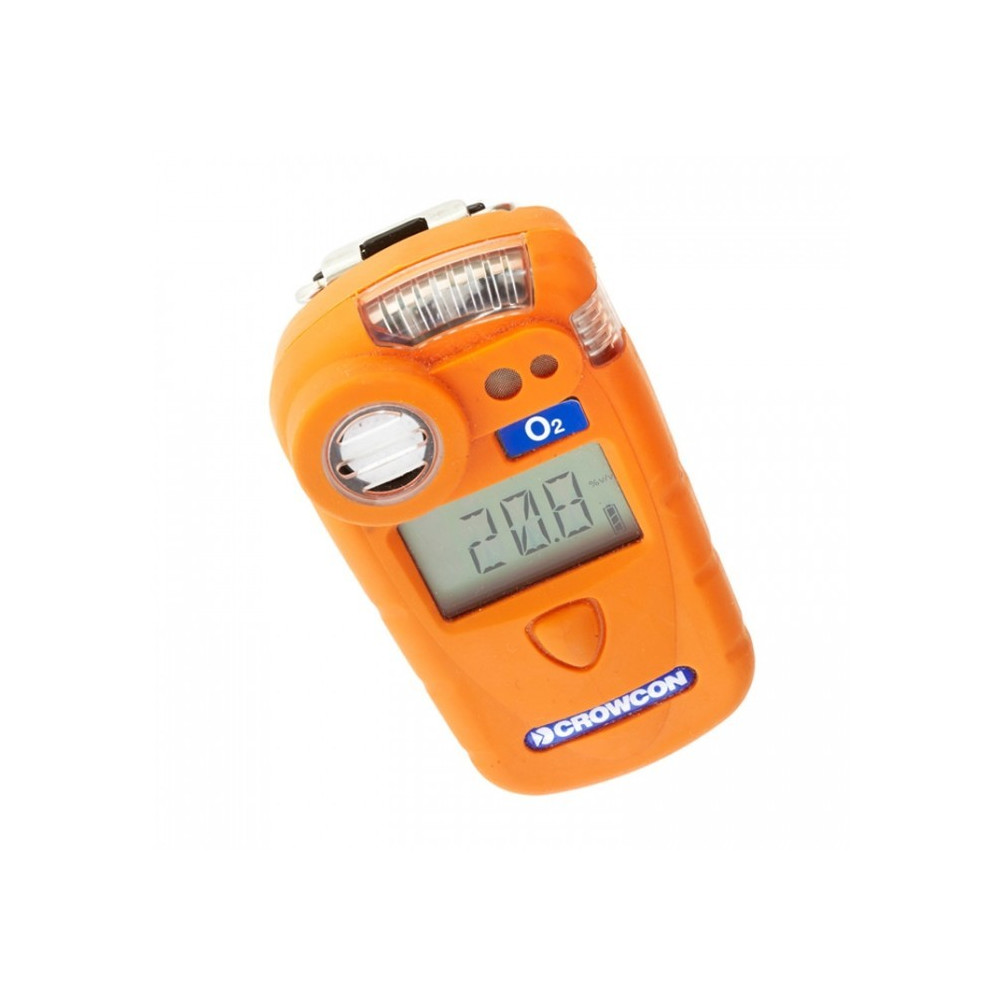

Gasman - Single gas portable detector

Available on order
€544.60
Tax excluded Delivery in 2-4 weeks
Data Logging
Gas

If you need a customized offer, or you can't find the configuration you need, do not hesitate to contact us.

We also offer the post sale services

  • Ordinary and extraordinary maintenance
  • Installation
  • Workers training
  • Spare parts
  • Calibration
Description

Choosing the portable gas detector for your needs

Gasman is a range of rugged, compact single gas personal monitors designed for use in the toughest environments.

With rugged impact resistant construction and compliance to IP65, Gasman offers a wide range of gases, including six flammable calibration options. Gasman gives an unbeatable combination of powerful loud and bright alarms. It’s stunningly compact and lightweight design makes it ideal for use in industries such as oil and gas, chemical, steel works and waste and water works.

Gasman is small, light and easy to use. Weighing just 130g, it is extremely durable, with high impact resistance and dust/water ingress protection to IP65. When potentially hazardous levels of gas are detected, the Gasman alerts the user with a loud 95 dB alarm, a vivid red/blue visual warning and also by vibrating.

Gasman features simple, single-button control and has an easy-to-read, backlit LCD display to ensure clear viewing of gas level readings, alarm conditions and battery life. Data and event logging are available as standard, and there is a built-in 30 day advance warning when calibration is due.

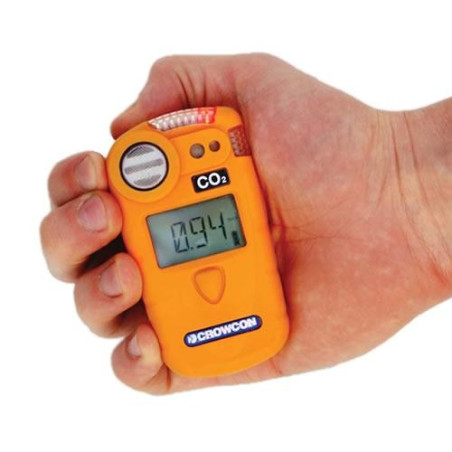

Gasman is also available in a safe area CO2 version offering 0-5% carbon dioxide measurements.

Robust

  • Tough polycarbonate housing - protects you in the harshest environments
  • Water and dust resistant to IP65
  • Full overmoulding - high impact resistance

User friendly

  • One button operation - quick and easy to use
  • Backlit display for gas diagnostics and operating status - easy to read
  • Ultra lightweight; just 85g for toxic versions - comfortable to wear

Effective warning

  • 2 levels of instantaneous alarm and TWA alarms for toxic versions - ensures prompt evacuation from hazardous zone
  • 95dB audible alarm
  • Vivid twin red/blue visual alarm - if ambient noise is high, Gasman alerts you by vibrating and with the high impact blue/red LED alarmsInternal vibrating alarm

Flexible

  • Versions available for flammable gas, oxygen and toxic gases - gas detector tailored to your requirements
  • Rechargeable versions for all gas types
  • Non-rechargeable versions for oxygen and toxic gases
  • Real-time TWA and peak display options
  • Fully interchangeable intelligent sensor modules

GAS

Intervallo

Allarmi tipici

Ammonia (NH3) 0-1000 ppm 25 ppm
Carbon dioxide (CO2) Vol. 0,5% Vol. 0,5%
Carbon monoxide (CO) 0-1.500 ppm 30 ppm
Carbon monoxide (CO)(hydrogen filtered) 0-500 ppm 30 ppm
Chlorine (Cl2) 0-20 ppm 0,3 ppm
Chlorine dioxide (ClO2) 0-1 ppm 0,1 ppm
Ethylene oxide (ETO) 0-10 ppm 3 ppm
Flammable (LEL) 0-100% LEL 20% LEL
Fluorine (F2) 0-1ppm 0,5 ppm
Hydrogen (H2) 0-2.000 ppm N/A
Hydrogen cyanide (HCN) 0-25 ppm 5 ppm
Hydrogen fluoride (HF) 0-10 ppm 1 ppm
Hydrogen sulphide (H2S) 0-250 ppm 5 ppm
Nitrogen dioxide (NO2) 0-20 ppm 1 ppm
Oxygen (O2) Vol. 0-25% Vol. 19%/23%
Ozone (O3) 0-1 ppm 0,1 ppm
Phosphine (PH3) 0-5 ppm 0,1 ppm
Phosgene (COCl2) 0-1 ppm 0,1 ppm
Sulphur dioxide (SO2) 0-20 ppm 1 ppm
Nitrogen oxide (NO) 0-100 ppm 25 ppm

Contact us for information about other possible combinations of gas sensors!

Crowcon
IONCWGSAGA008G+ IONCWC011318
Response time
Flammable and toxic gas: 20 seconds; oxygen: 10 seconds
Battery life
Rechargeable lithium battery for all gas types (12 hours minimum), non rechargeable lithium battery for toxics and oxygen (up to 2 years)
Data logging
Full timed data logging with adjustable sample rate, set to 1 min. data rate as default. 900 hours storage at 1 min. interval (54,000 logs), 4800 events
Temperature
-20 to 60 °C
Dimensions
H:90 mm L:48 mm P:24 mm
Weight
Different based on the model, max 140g
Calibration
Gasman can be routinely calibrated using Portables Pro software
Approvals
Toxic or O2: ATEX II 1G Ex ia IIC T4 Ga (-20°C ≤ Ta ≤ +65OC) BASEEFA04ATEX0384; IECEx BAS05.0039. Flammable: ATEX II 2G Ex ia d IIC T4 Gb (-20°C ≤ Ta ≤ +65OC) BASEEFA04ATEX0383; IECEx BAS05.0038. CSA Class 1 Groups A,B,C,D Division 1
Allarme
95dB (multiple alarm options let you select distinctive tones for different alarm levels), dual colours red/blue flashing LEDs in a gas hazard, internal vibration
Classificazione IP
IP65** (heavy rain)
Sampling
Optional manual aspirator
Humidity
10 to 95% RH+
